RC

Family Pocket - Electronic enclosures - Plastic

Description

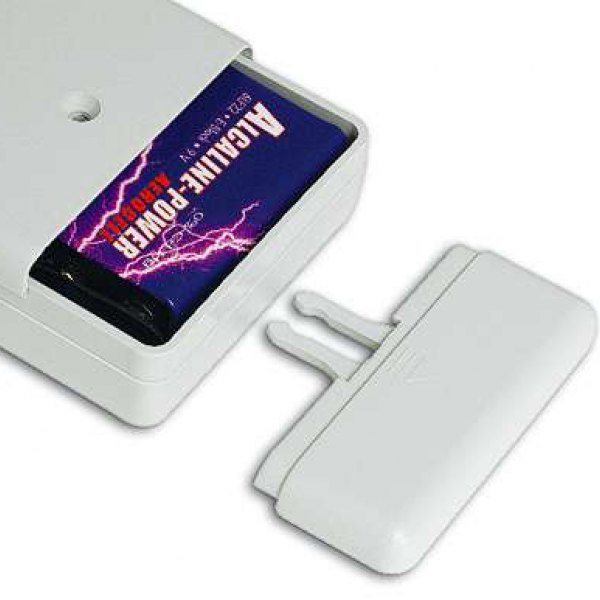

ABS enclosures with rounded corners. 9V battery compartment with a snap sliding lid. The model “RC124” have one, two and four yellow push-buttons set. The model “10009A-B” have on the top a transparent window. Matt surface finish. Closing by only one screw. Upon request stainless steel clip (Mod. CL1).

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
10009-B.5 107 60 24,5 9018
AG-ATY 63 52 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 63
  • MAX PCB W (mm): 52
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG
10009-B.9 107 60 24,5 9004
P2H-AT 63 52 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 63
  • MAX PCB W (mm): 52
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG
10009A-B.5 107 60 24,5 9018
AG-ATY 63 52 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 63
  • MAX PCB W (mm): 52
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG
10009A-B.9 107 60 24,5 9004
P2H-AT 63 52 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 63
  • MAX PCB W (mm): 52
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG
RC124.5 107 60 24,5 9018
AG-ATY 63 52 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9018
  • Material: AG-ATY
  • MAX PCB L (mm): 63
  • MAX PCB W (mm): 52
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG
RC124.9 107 60 24,5 9004
P2H-AT 63 52 1 1 x 9V CL1
PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 63
  • MAX PCB W (mm): 52
  • Screws: 1
  • Battery: 1 x 9V
  • Accessories: CL1
  • Drawings:  PDF  DWG
