OVOTEK

Family Handheld - Electronic enclosures - Plastic

Description

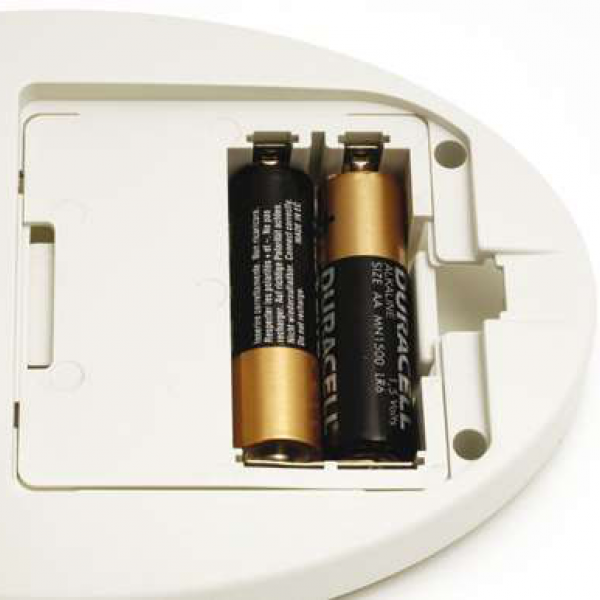

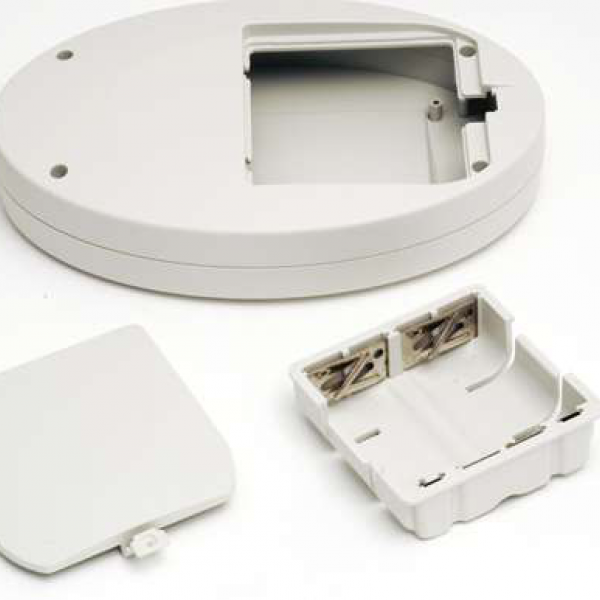

Ergonomically shaped ABS enclosures, especially designed for use as hand-held instruments enclosures. The Model “OK-2” has on the cover a recessed area suitable for a keypad membrane or a wide screen 4,3 “ TFT Display. The models with “-B” have a battery compartment for two 1,5V (AA) or one 9V flat battery (PP3) while the models with “B2” have a battery compartment for four 1,5V (AA) or two 9V flat batteries (PP3). Matt surface finish. Closing by four screws.

Details

Products

Model L (mm) W (mm) H (mm) Color (Ral) Material MAX PCB L (mm) MAX PCB W (mm) Screws Battery Accessories Drawings Other
OK1.7 165,3 103,2 38,5 9002
UG UV 0120 114 95 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
OK1.9 165,3 103,2 38,5 9004
P2H-AT 114 95 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
OK1-B.7 165,3 103,2 38,5 9002
UG UV 0120 114 95 4 2 x AA / 1 x 9V PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: 2 x AA / 1 x 9V
  • Accessories:
  • Drawings:  PDF  DWG
OK1-B.9 165,3 103,2 38,5 9004
P2H-AT 114 95 4 2 x AA / 1 x 9V PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: 2 x AA / 1 x 9V
  • Accessories:
  • Drawings:  PDF  DWG
OK1-B2.7 165,3 103,2 38,5 9002
UG UV 0120 114 95 4 4 x AA / 2 x 9V PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: 4 x AA / 2 x 9V
  • Accessories:
  • Drawings:  PDF  DWG
OK1-B2.9 165,3 103,2 38,5 9004
P2H-AT 114 95 4 4 x AA / 2 x 9V PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: 4 x AA / 2 x 9V
  • Accessories:
  • Drawings:  PDF  DWG
OK2.7 165,3 103,2 38,5 9002
UG UV 0120 114 95 4 - PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
OK2.9 165,3 103,2 38,5 9004
P2H-AT 114 95 4 - PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: -
  • Accessories:
  • Drawings:  PDF  DWG
OK2-B.7 165,3 103,2 38,5 9002
UG UV 0120 114 95 4 2 x AA / 1 x 9V PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: 2 x AA / 1 x 9V
  • Accessories:
  • Drawings:  PDF  DWG
OK2-B.9 165,3 103,2 38,5 9004
P2H-AT 114 95 4 2 x AA / 1 x 9V PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: 2 x AA / 1 x 9V
  • Accessories:
  • Drawings:  PDF  DWG
OK2-B2.7 165,3 103,2 38,5 9002
UG UV 0120 114 95 4 4 x AA / 2 x 9V PDF
DWG
View
  • Color (Ral): 9002
  • Material: UG UV 0120
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: 4 x AA / 2 x 9V
  • Accessories:
  • Drawings:  PDF  DWG
OK2-B2.9 165,3 103,2 38,5 9004
P2H-AT 114 95 4 4 x AA / 2 x 9V PDF
DWG
View
  • Color (Ral): 9004
  • Material: P2H-AT
  • MAX PCB L (mm): 114
  • MAX PCB W (mm): 95
  • Screws: 4
  • Battery: 4 x AA / 2 x 9V
  • Accessories:
  • Drawings:  PDF  DWG
12 product families, 152 series. You can't find what you're looking for? Contact us
