Description

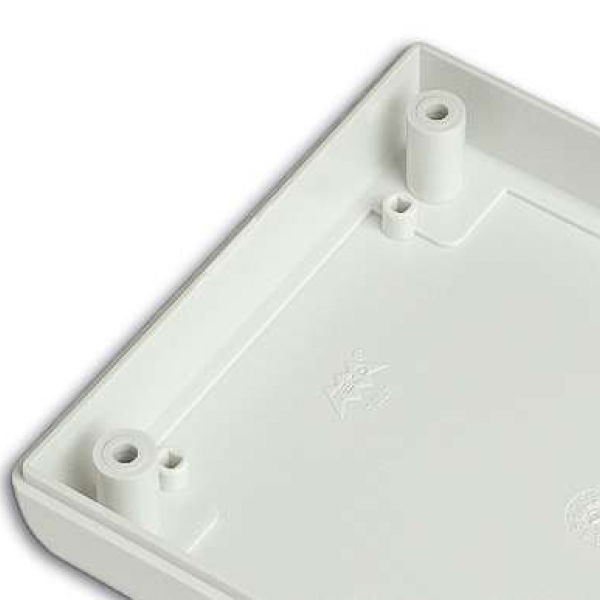

Compact ABS enclosures with a 1.8 mm recessed area suitable for a keypad membrane or an aluminium panel. Base and cover have integral PCB mounting studs. The model “TK-S” has inclined cover. Matt surface finish. Closing by four screws. Upon request ABS mounting tabs “MT2”.
Details
Products
| Model | L (mm) | W (mm) | H (mm) | Color (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Screws | Battery | Accessories | Drawings | Other | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TK-F.7 | 130 | 100 | 34,2 |
9002 |
FORMACROM 9249FC | 122 | 92 | 4 | - |
M53 MT2 |
PDF DWG |
|
|
TK-F.9 | 130 | 100 | 34,2 |
9004 |
TERLURAN GP-35 | 122 | 92 | 4 | - |
M53 MT2 |
PDF DWG |
|
|
TK-S.7 | 130 | 100 | 50 |
9002 |
FORMACROM 9249FC | 122 | 92 | 4 | - |
M53 MT2 |
PDF DWG |
|
|
TK-S.9 | 130 | 100 | 50 |
9004 |
TERLURAN GP-35 | 122 | 92 | 4 | - |
M53 MT2 |
PDF DWG |
12 product families, 152 series. You can't find what you're looking for? Contact us
