Beschreibung

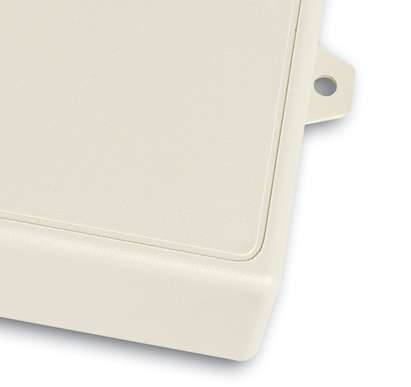

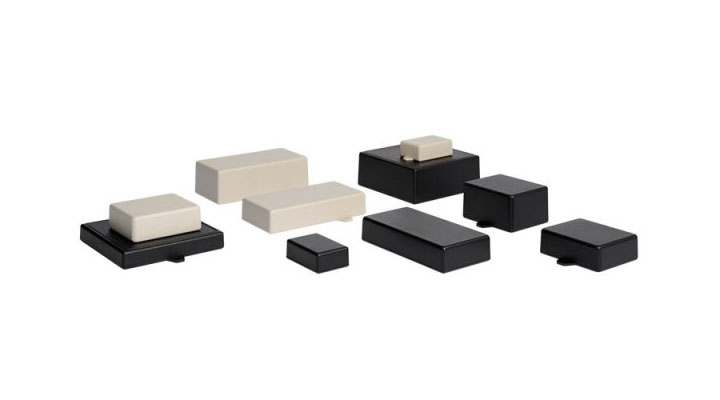

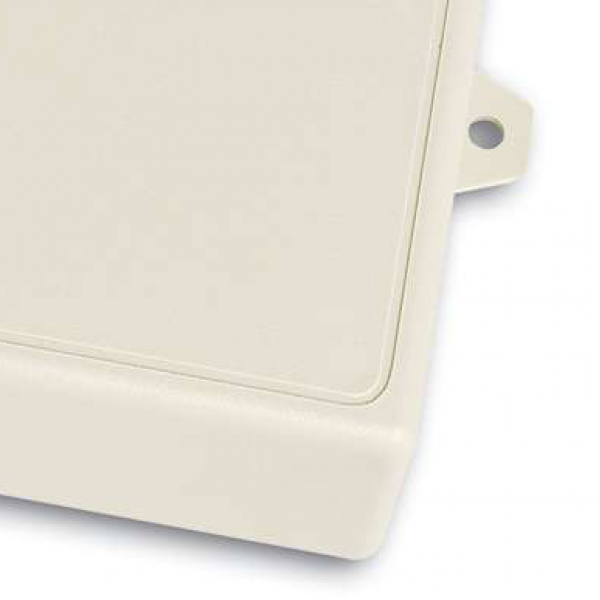

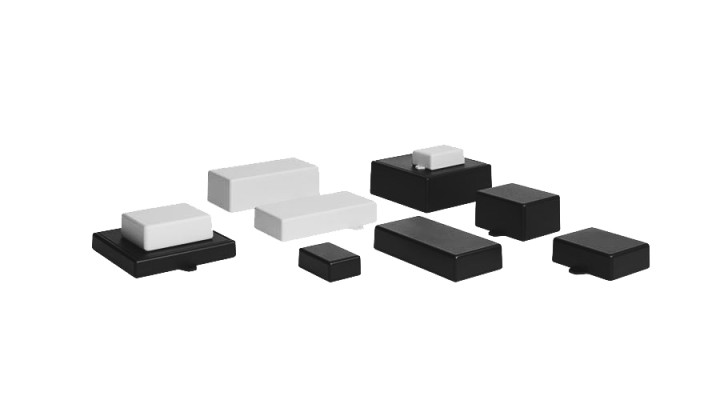

Kunststoffgehäuse mit abgerundeten Ecken, matter Oberfläche und leichter Montage. Die „E“-Modelle haben Befestigungslaschen. Verschluß mit zwei oder vier Schrauben.
Details
Produkte
| |
|---|---|

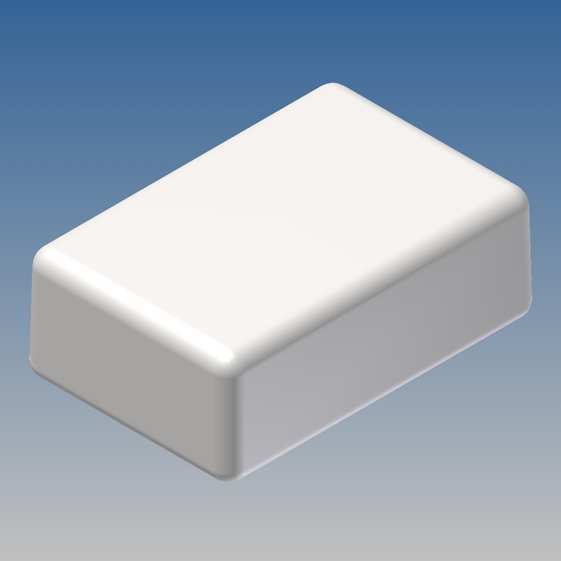

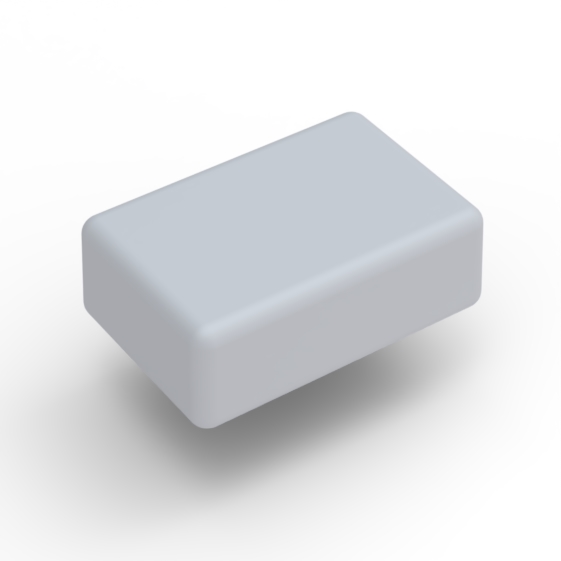

| Modell | SR01.7 |
| L (mm) | 57 |
| W (mm) | 38 |
| H (mm) | 20 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 50 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

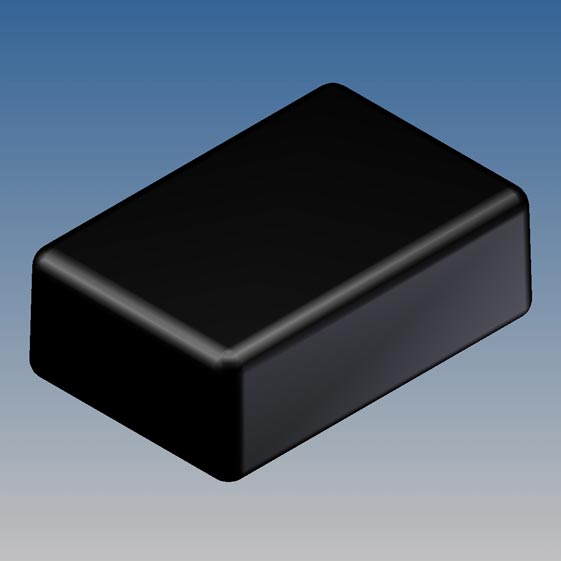

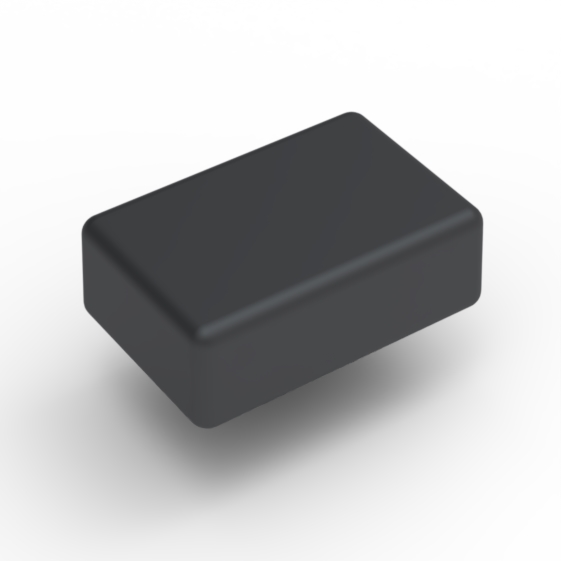

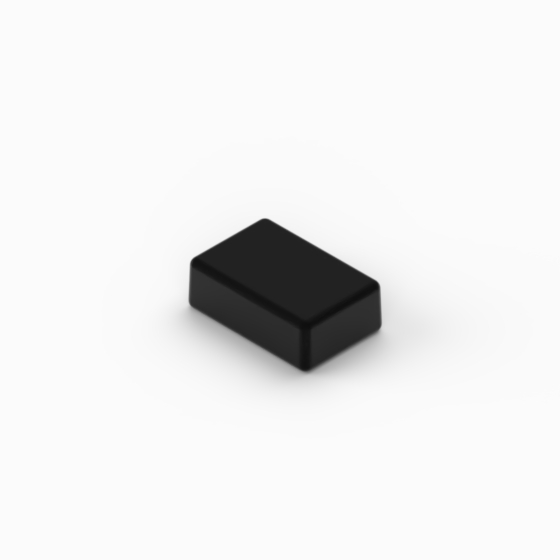

| Modell | SR01.9 |
| L (mm) | 57 |
| W (mm) | 38 |
| H (mm) | 20 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 50 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

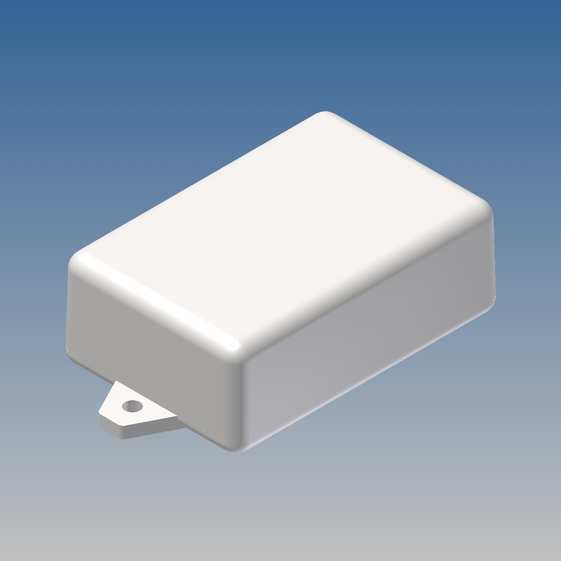

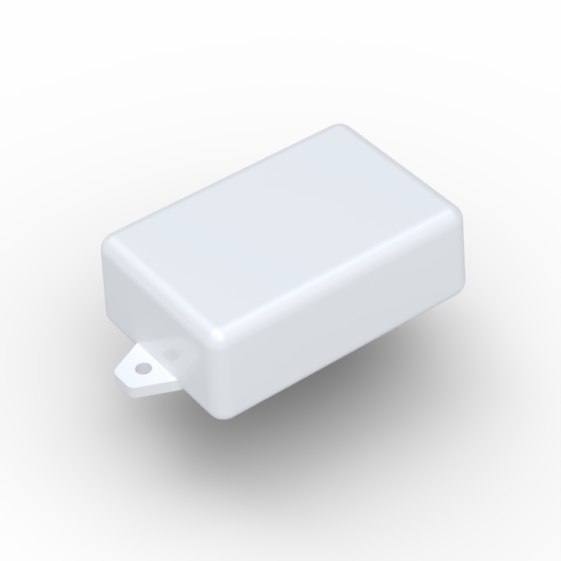

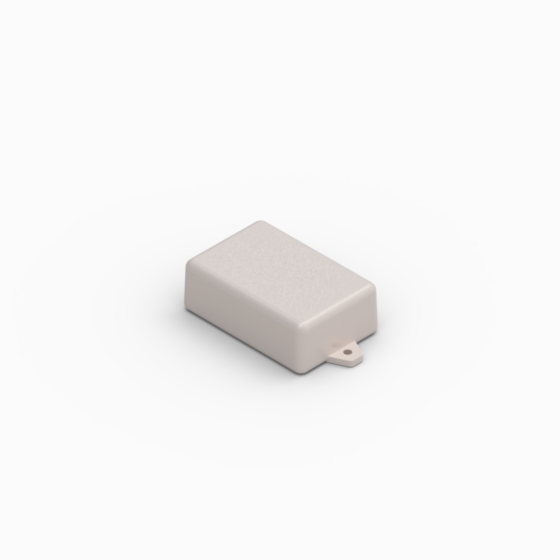

| Modell | SR01-E.7 |
| L (mm) | 57 |
| W (mm) | 38 |
| H (mm) | 20 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 50 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

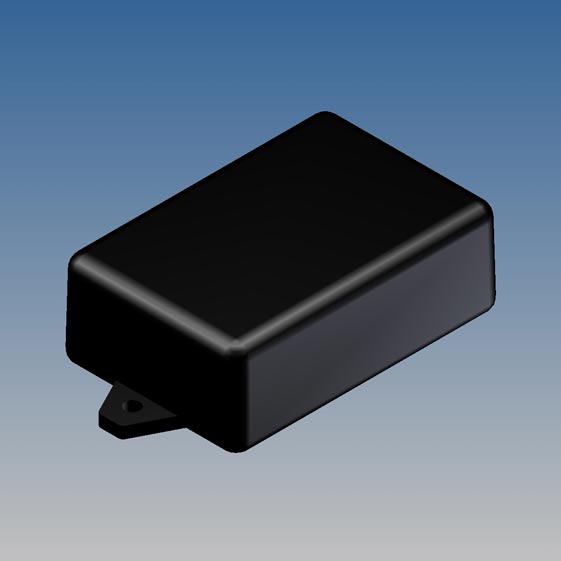

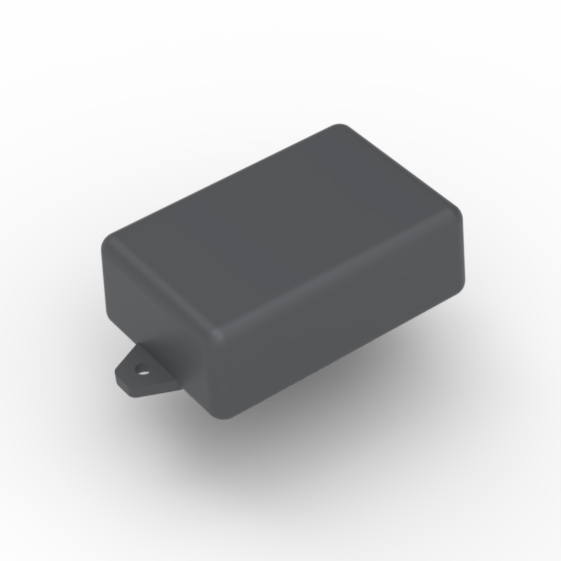

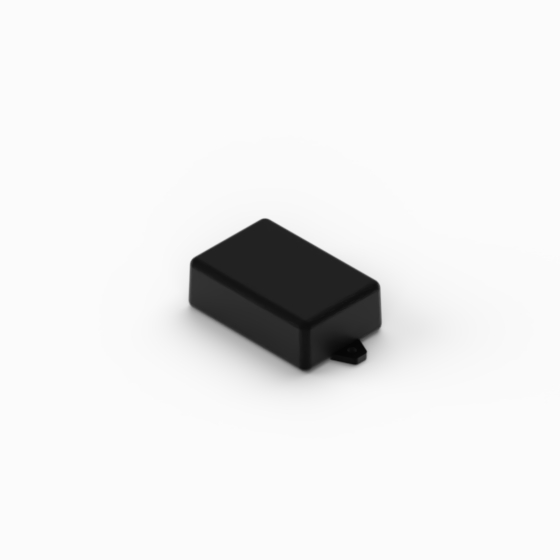

| Modell | SR01-E.9 |
| L (mm) | 57 |
| W (mm) | 38 |
| H (mm) | 20 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 50 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

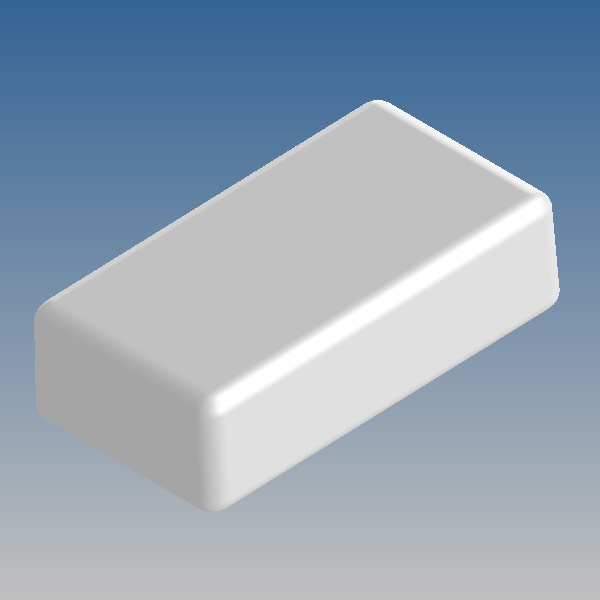

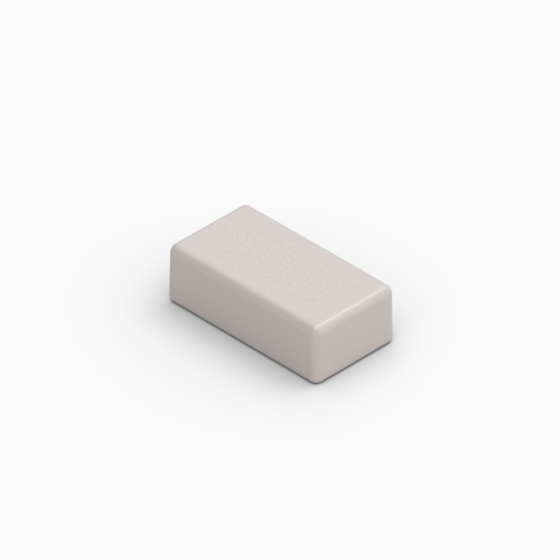

| Modell | SR02.7 |
| L (mm) | 71,5 |
| W (mm) | 38,3 |
| H (mm) | 22,9 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 64,5 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

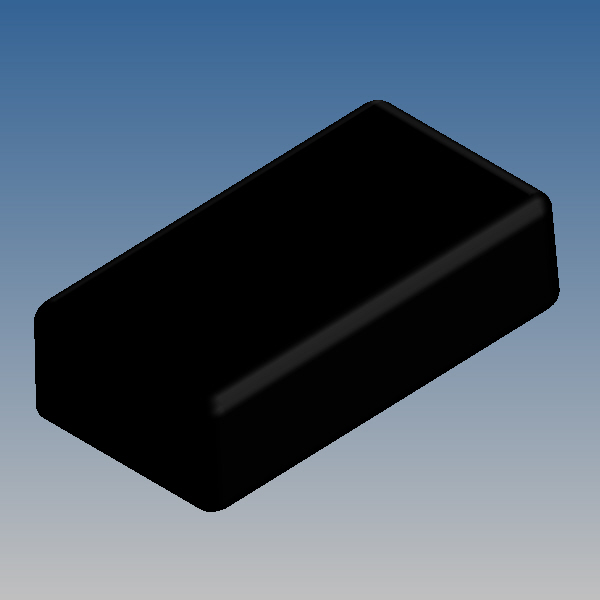

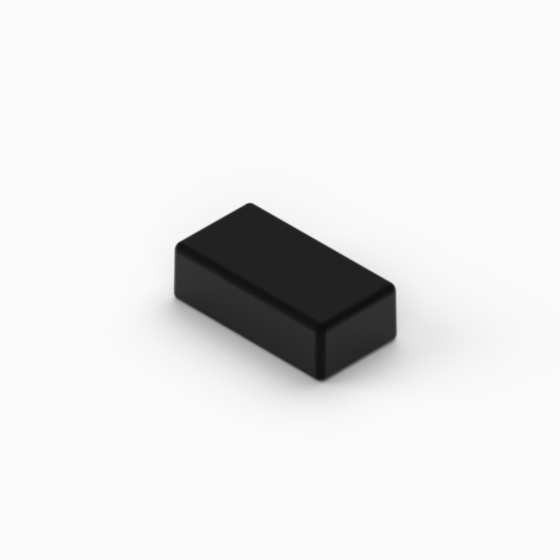

| Modell | SR02.9 |
| L (mm) | 71,5 |
| W (mm) | 38,3 |
| H (mm) | 22,9 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 64,5 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

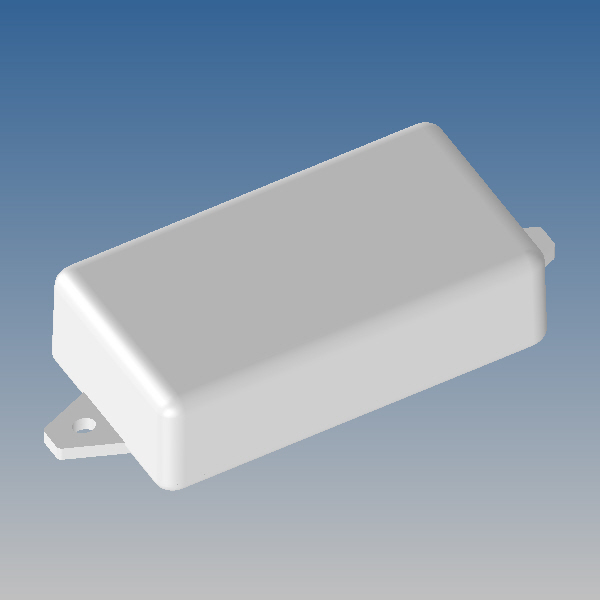

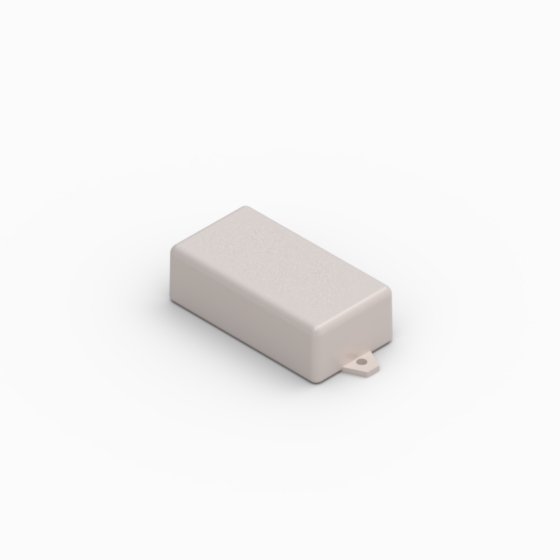

| Modell | SR02-E.7 |
| L (mm) | 71,5 |
| W (mm) | 38,3 |
| H (mm) | 22,9 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 64,5 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

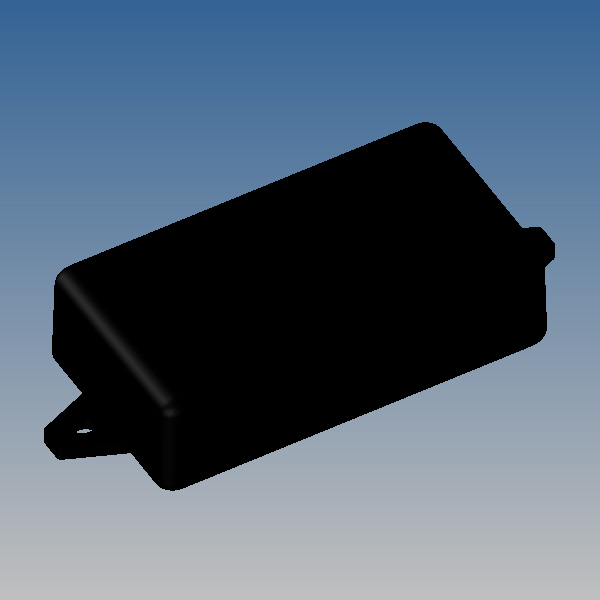

| Modell | SR02-E.9 |
| L (mm) | 71,5 |
| W (mm) | 38,3 |
| H (mm) | 22,9 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 64,5 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

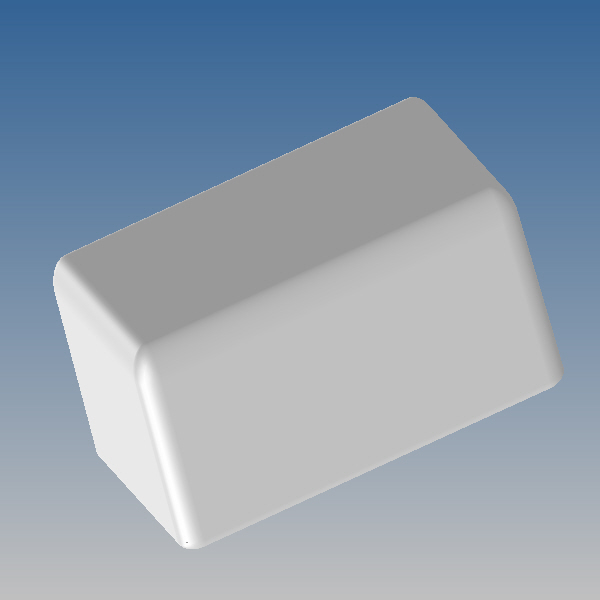

| Modell | SR03 - OUT OF STOCK.7 |
| L (mm) | 71,5 |
| W (mm) | 38,3 |
| H (mm) | 40,9 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 64,5 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

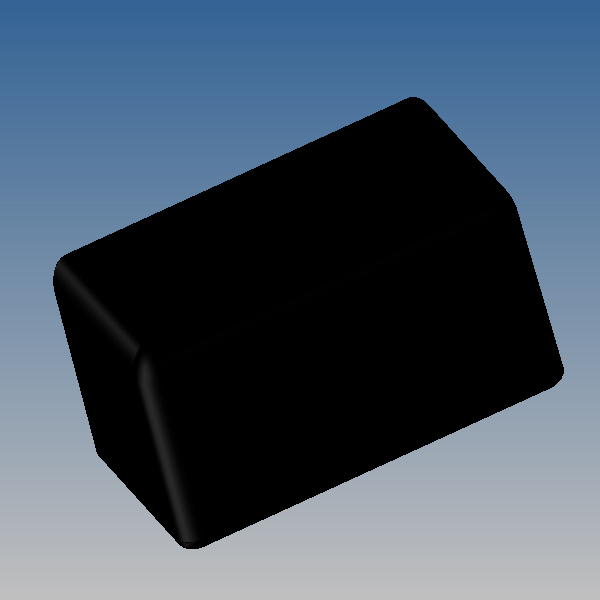

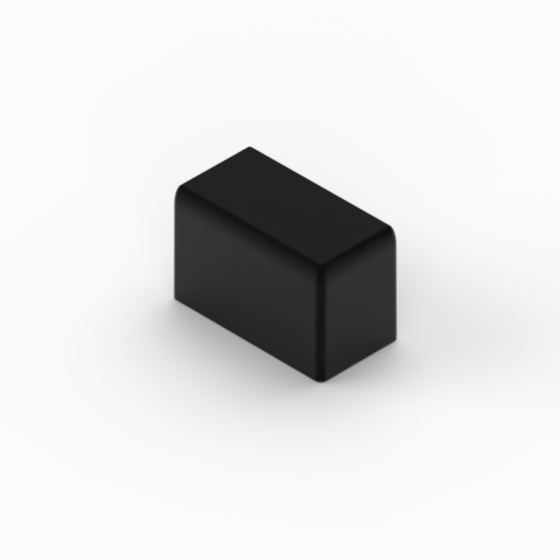

| Modell | SR03 - OUT OF STOCK.9 |
| L (mm) | 71,5 |
| W (mm) | 38,3 |
| H (mm) | 40,9 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 64,5 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

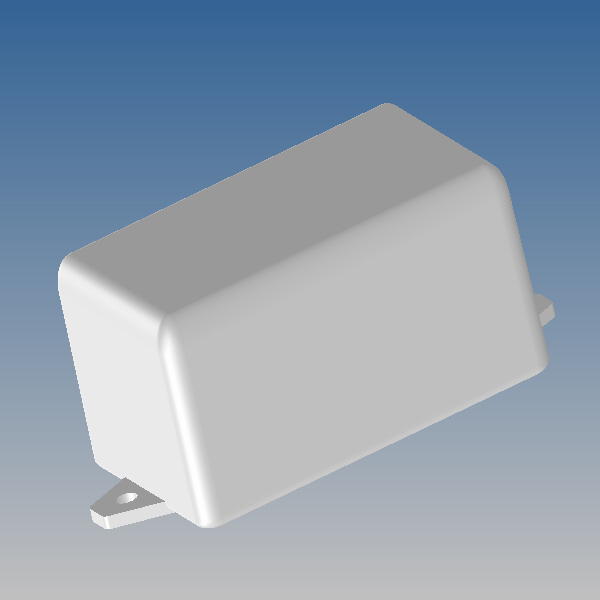

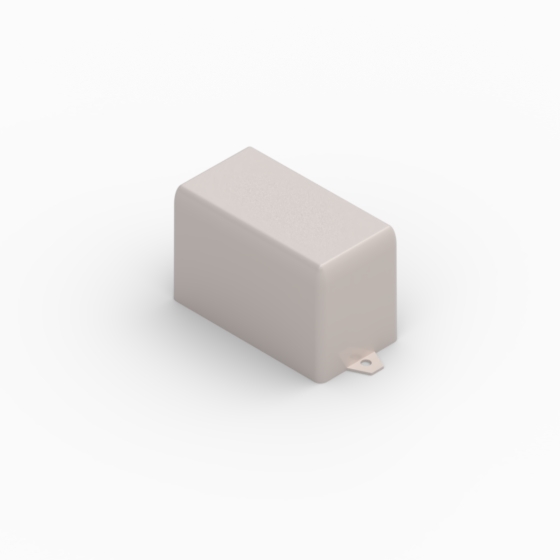

| Modell | SR03-E - OUT OF STOCK.7 |
| L (mm) | 71,5 |
| W (mm) | 38,3 |
| H (mm) | 40,9 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 64,5 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

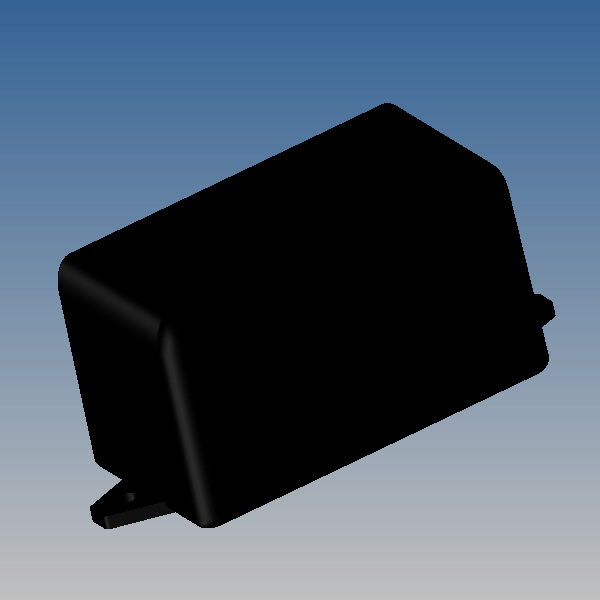

| Modell | SR03-E - OUT OF STOCK.9 |
| L (mm) | 71,5 |
| W (mm) | 38,3 |
| H (mm) | 40,9 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 64,5 |
| MAX PCB W (mm) | 31 |
| Schrauben | 2 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

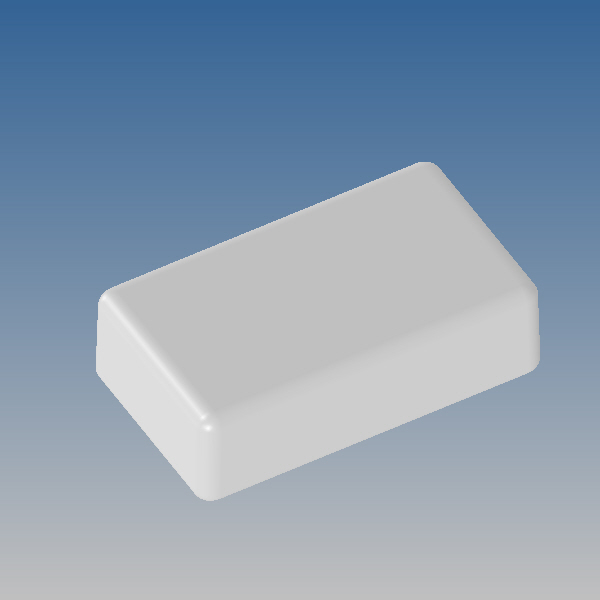

| Modell | SR04.7 |
| L (mm) | 88,9 |
| W (mm) | 50,8 |
| H (mm) | 25,5 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 82 |
| MAX PCB W (mm) | 44 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

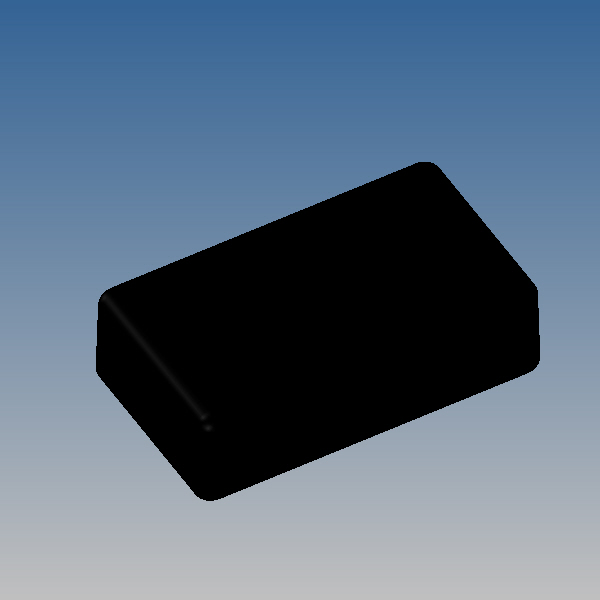

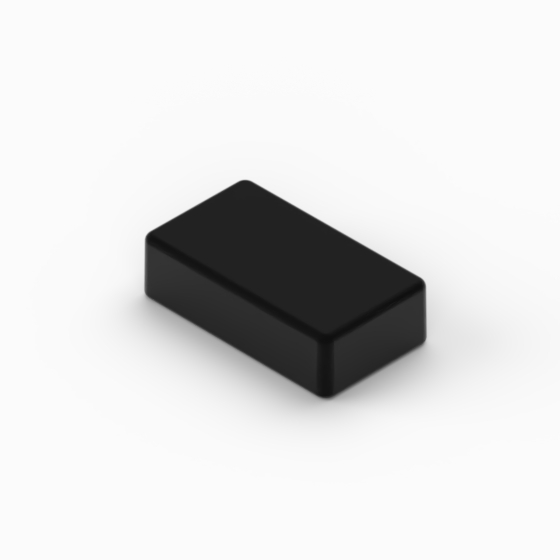

| Modell | SR04.9 |
| L (mm) | 88,9 |
| W (mm) | 50,8 |
| H (mm) | 25,5 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 82 |
| MAX PCB W (mm) | 44 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

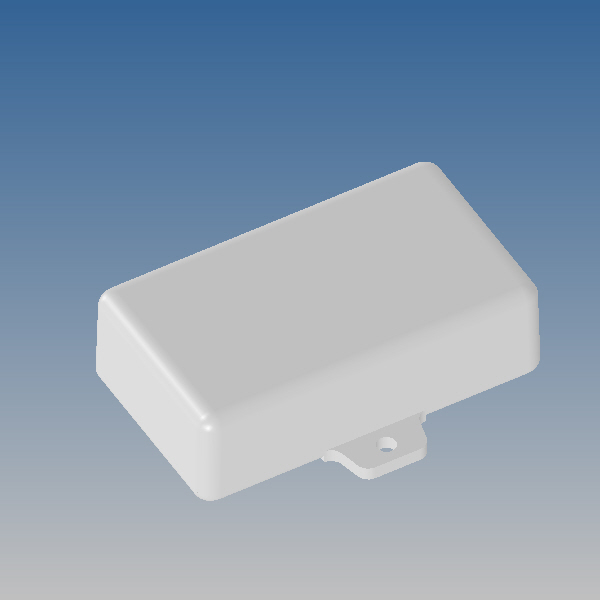

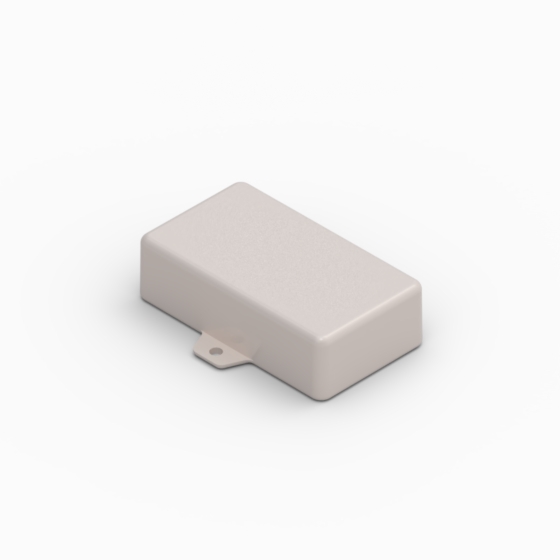

| Modell | SR04-E.7 |
| L (mm) | 88,9 |
| W (mm) | 50,8 |
| H (mm) | 25,5 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 82 |
| MAX PCB W (mm) | 44 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

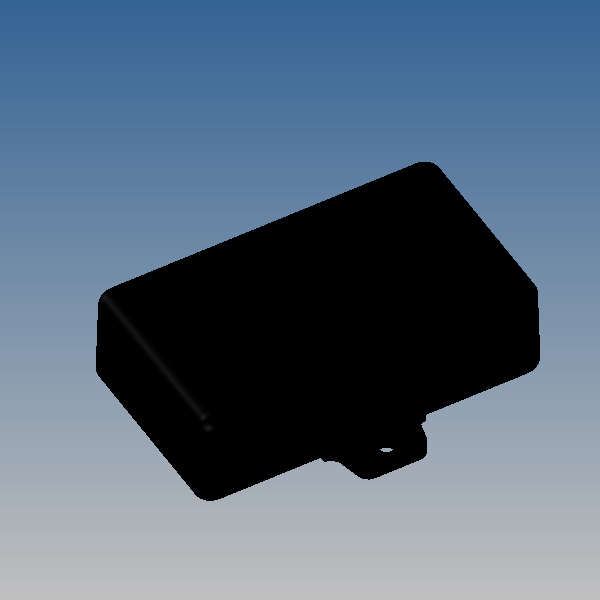

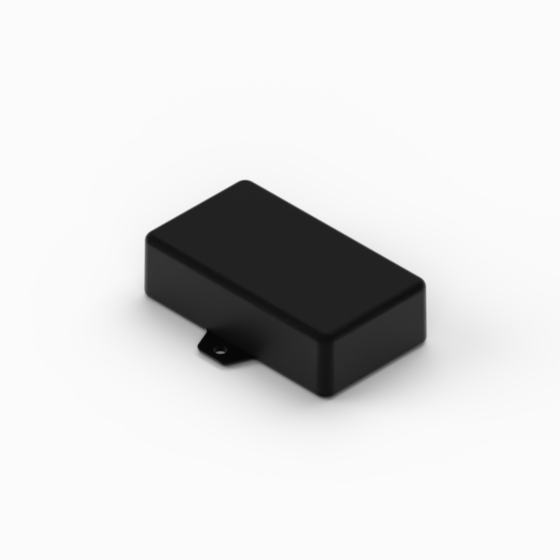

| Modell | SR04-E.9 |
| L (mm) | 88,9 |
| W (mm) | 50,8 |
| H (mm) | 25,5 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 82 |
| MAX PCB W (mm) | 44 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

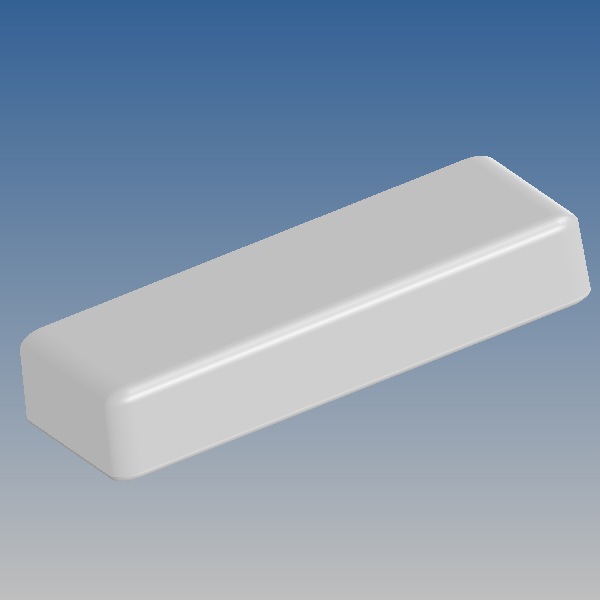

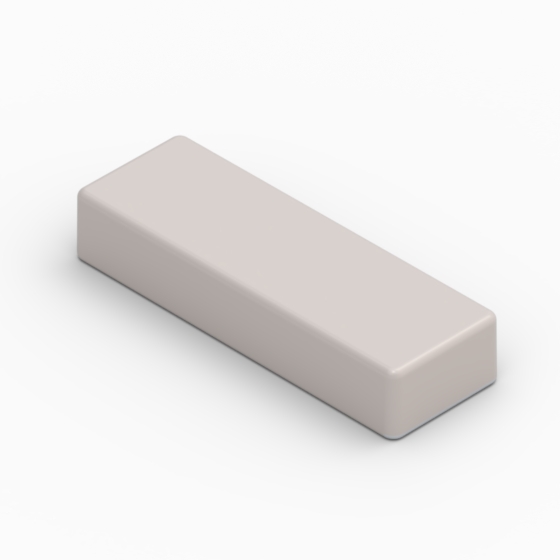

| Modell | SR06 - OUT OF STOCK.7 |
| L (mm) | 153 |
| W (mm) | 52 |
| H (mm) | 28 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 144 |
| MAX PCB W (mm) | 43 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

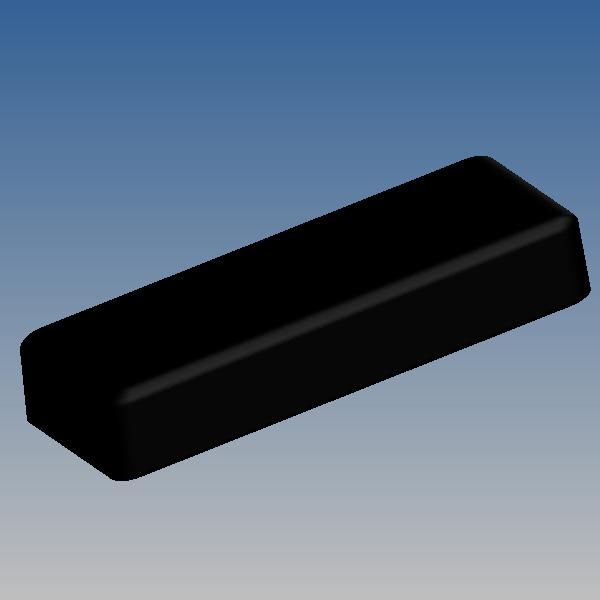

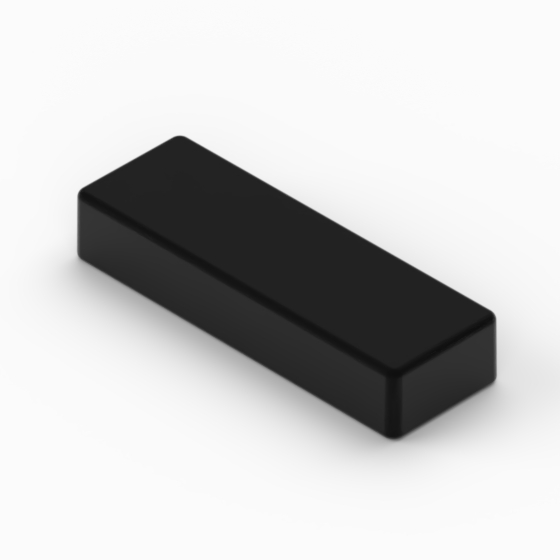

| Modell | SR06 - OUT OF STOCK.9 |
| L (mm) | 153 |
| W (mm) | 52 |
| H (mm) | 28 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 144 |
| MAX PCB W (mm) | 43 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

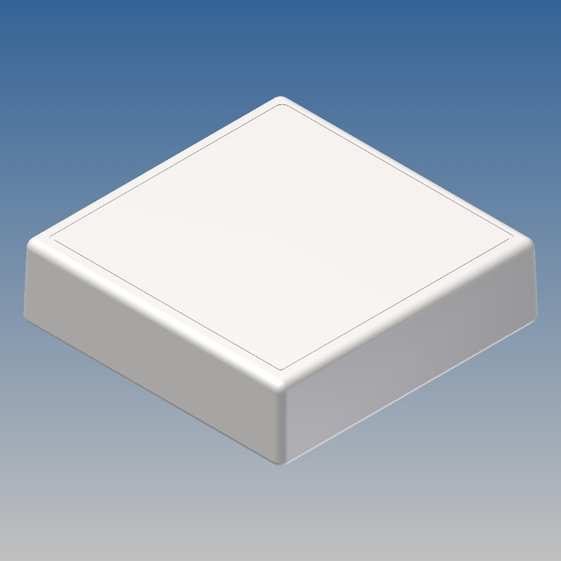

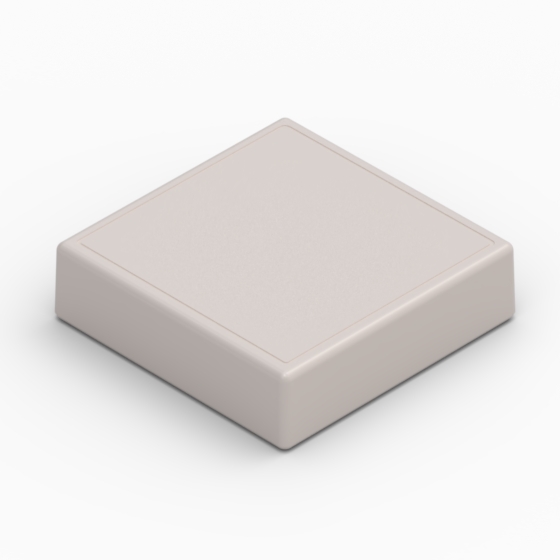

| Modell | SR120 - OUT OF STOCK.7 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 31 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

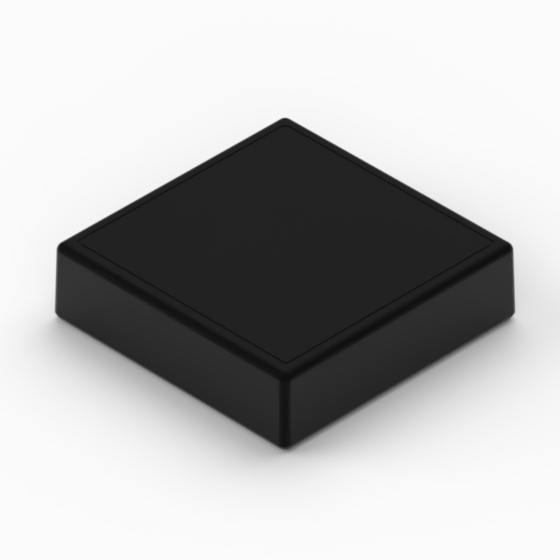

| Modell | SR120 - OUT OF STOCK.9 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 31 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

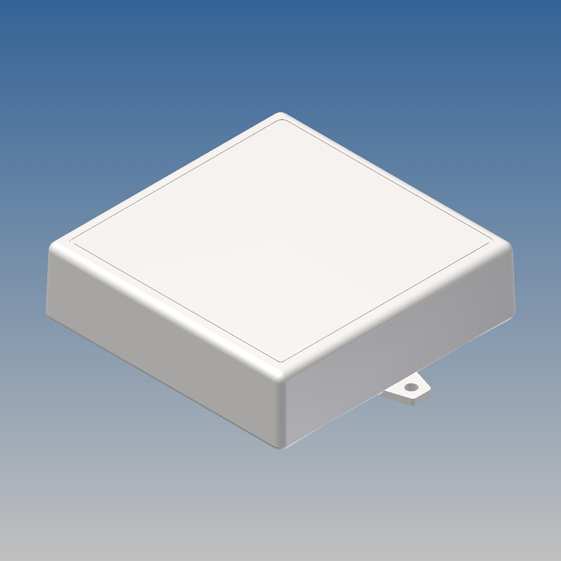

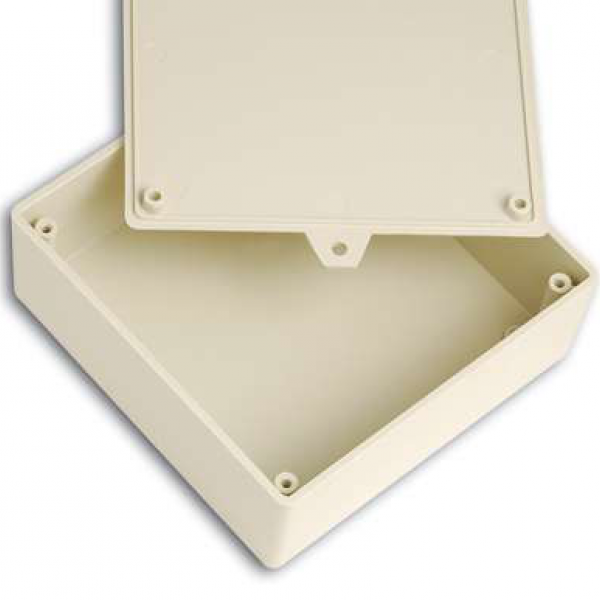

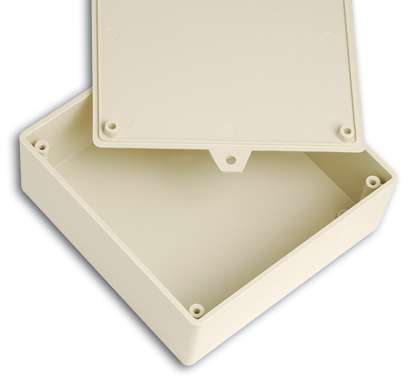

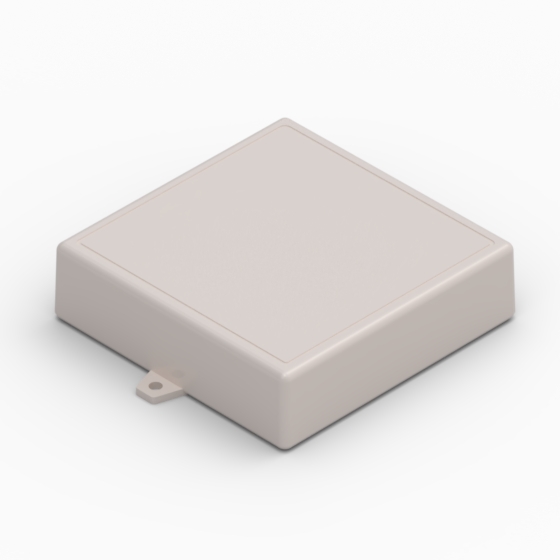

| Modell | SR120-E - OUT OF STOCK.7 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 31 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

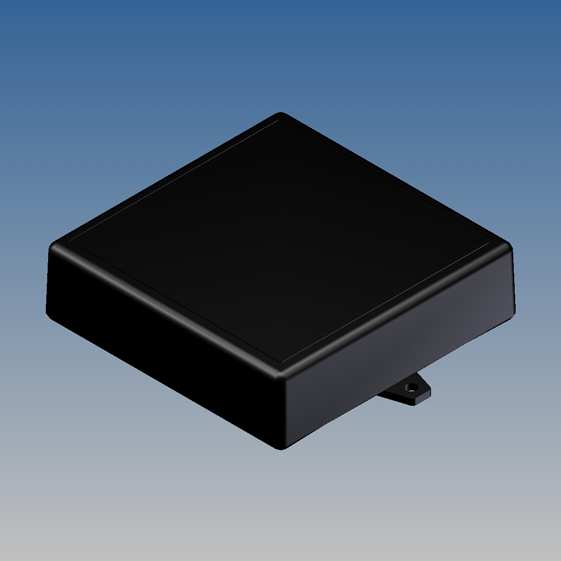

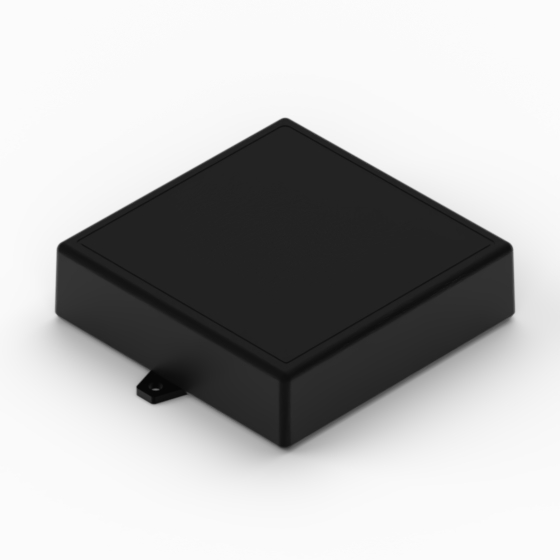

| Modell | SR120-E - OUT OF STOCK.9 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 31 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

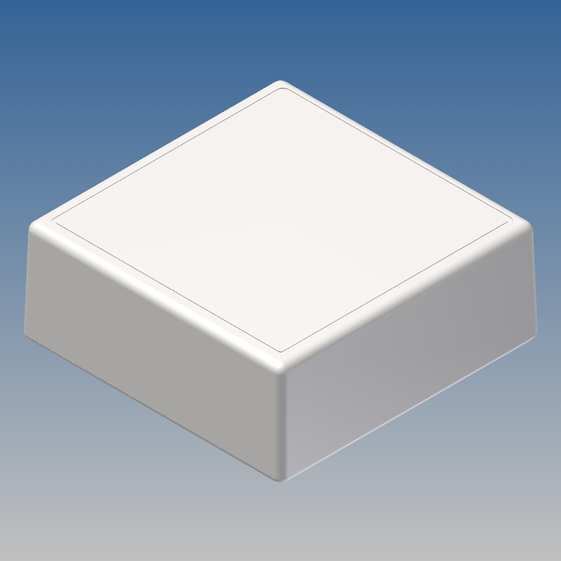

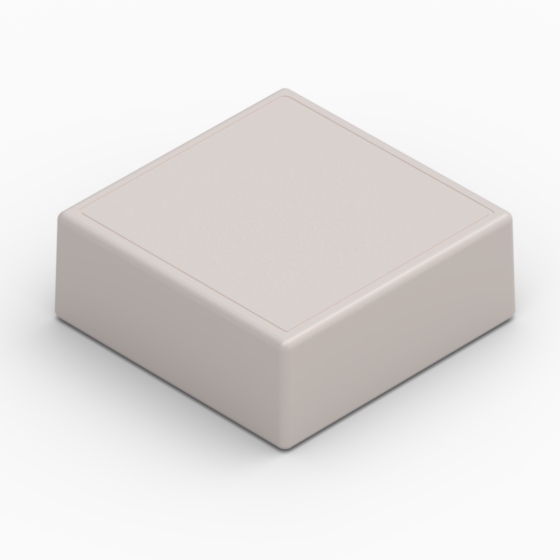

| Modell | SR170 - OUT OF STOCK.7 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 43,4 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

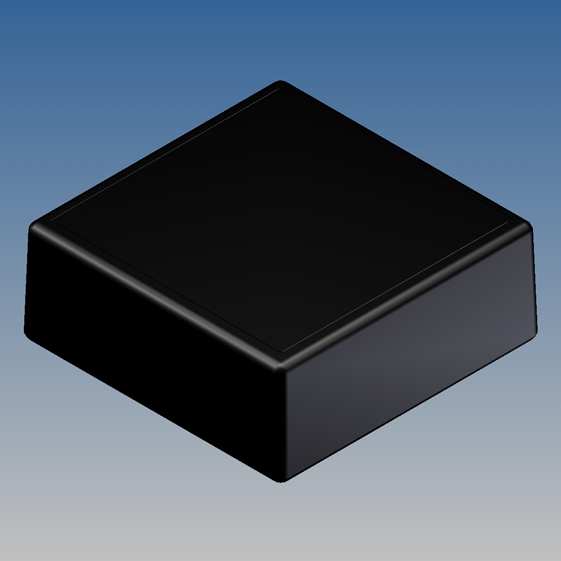

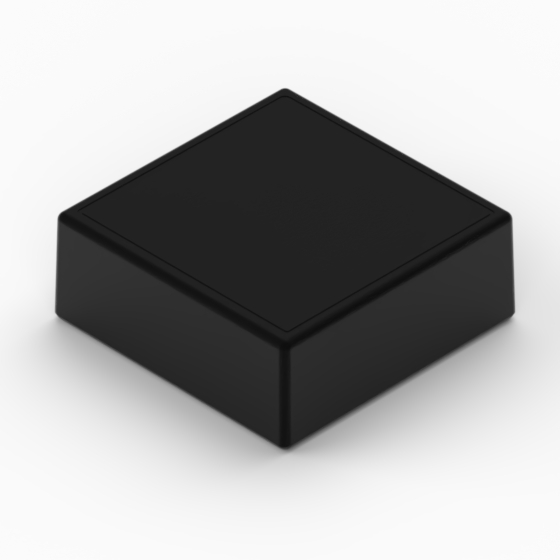

| Modell | SR170 - OUT OF STOCK.9 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 43,4 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

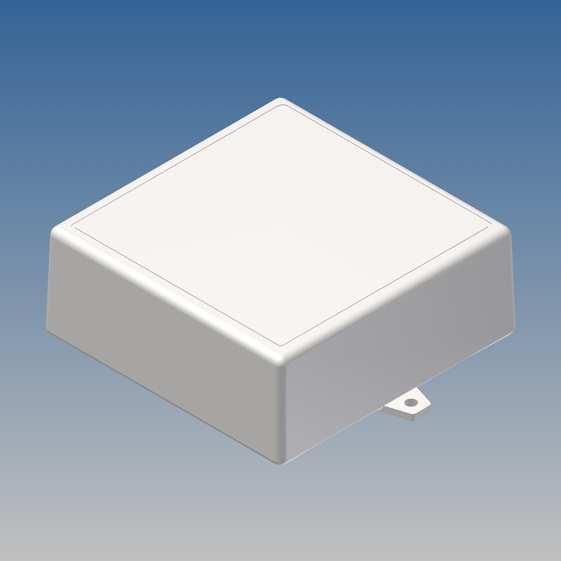

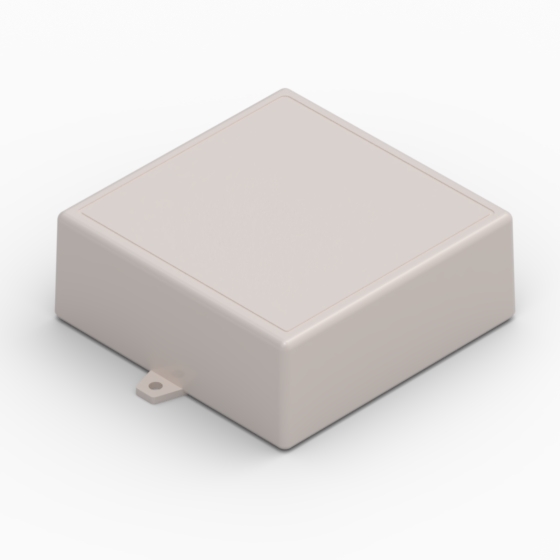

| Modell | SR170-E - OUT OF STOCK.7 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 43,4 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

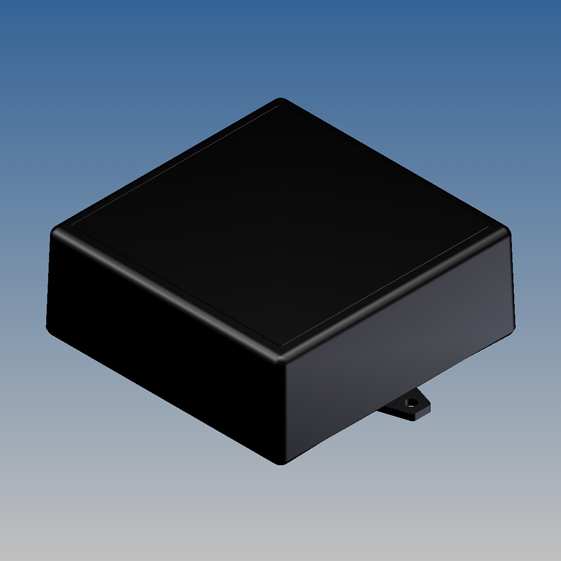

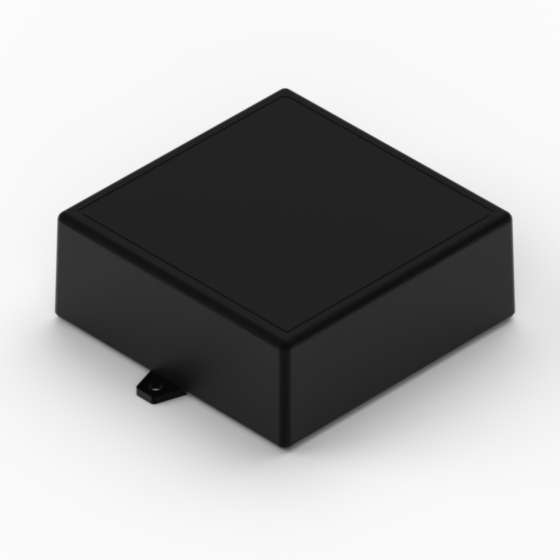

| Modell | SR170-E - OUT OF STOCK.9 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 43,4 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

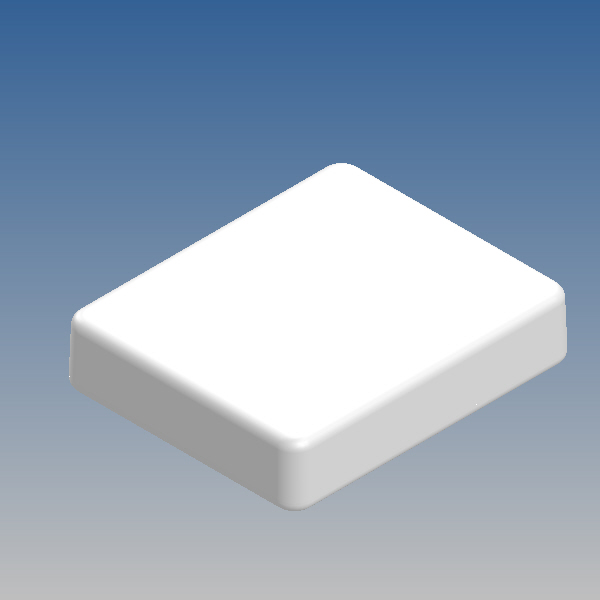

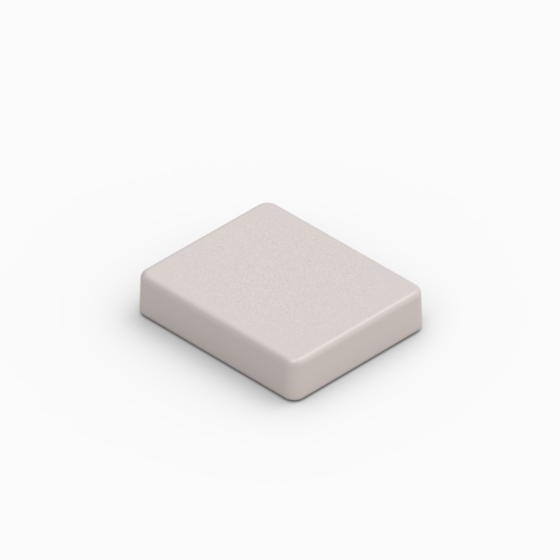

| Modell | SR21 - OUT OF STOCK.7 |
| L (mm) | 76,2 |
| W (mm) | 65,5 |
| H (mm) | 16,6 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 70,6 |
| MAX PCB W (mm) | 57.9 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

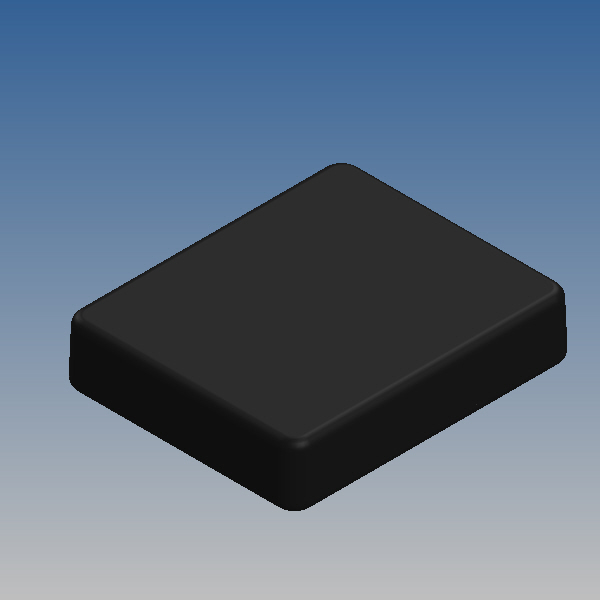

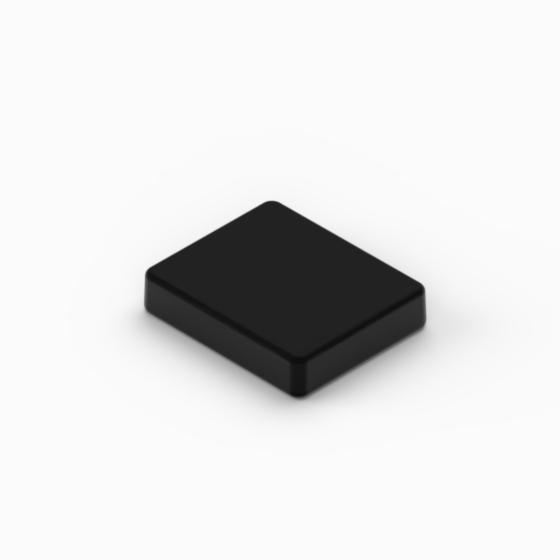

| Modell | SR21 - OUT OF STOCK.9 |
| L (mm) | 76,2 |
| W (mm) | 65,5 |
| H (mm) | 16,6 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 70,6 |
| MAX PCB W (mm) | 57.9 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

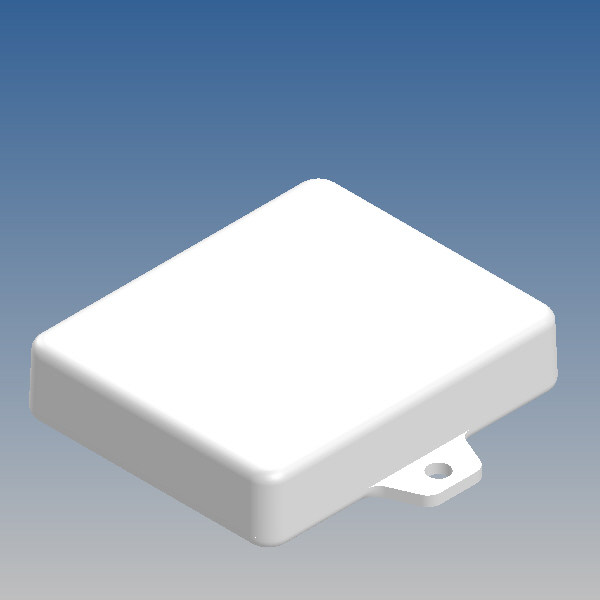

| Modell | SR21-E.7 |
| L (mm) | 76,2 |
| W (mm) | 63,5 |
| H (mm) | 16,6 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 70,6 |
| MAX PCB W (mm) | 57.9 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

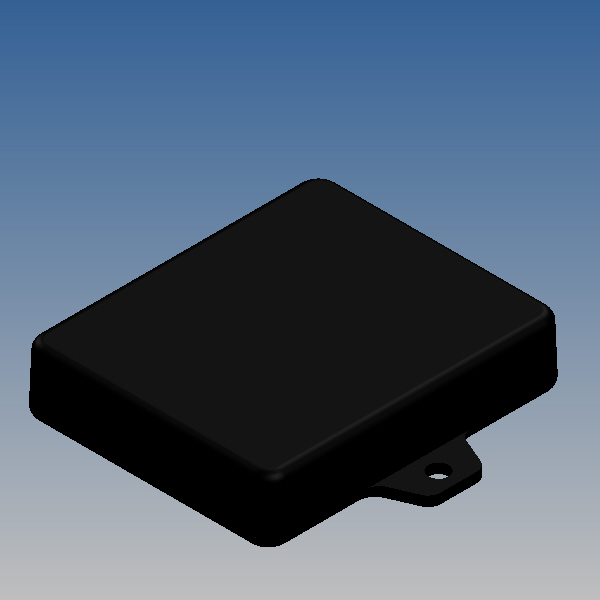

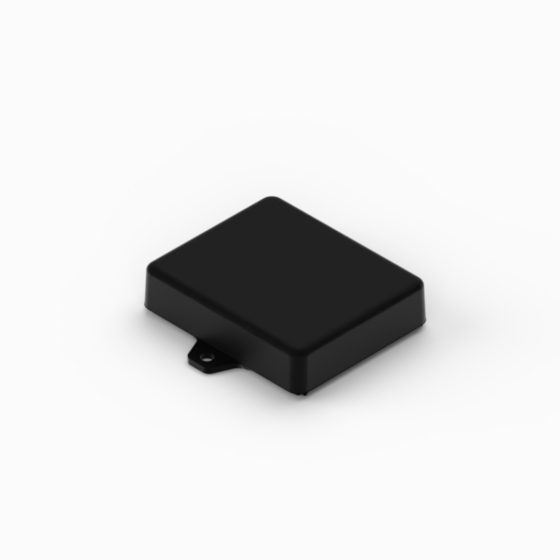

| Modell | SR21-E.9 |
| L (mm) | 76,2 |
| W (mm) | 63,5 |
| H (mm) | 16,6 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 70,6 |
| MAX PCB W (mm) | 57.9 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

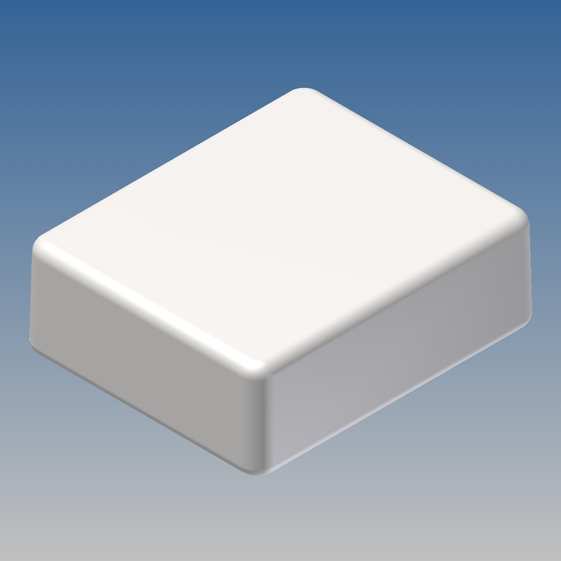

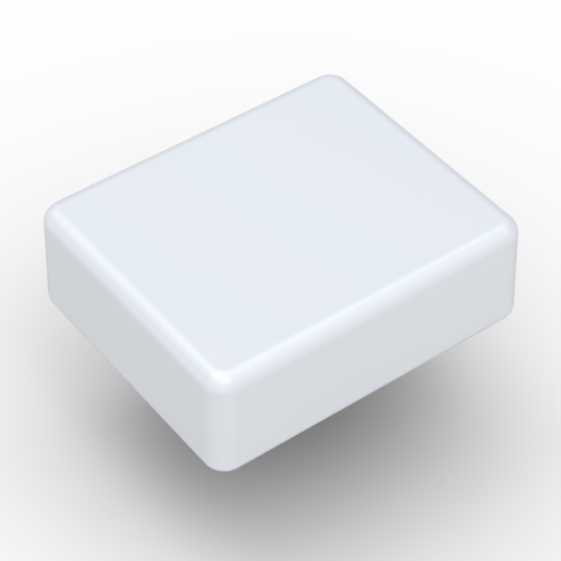

| Modell | SR22.7 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 26 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

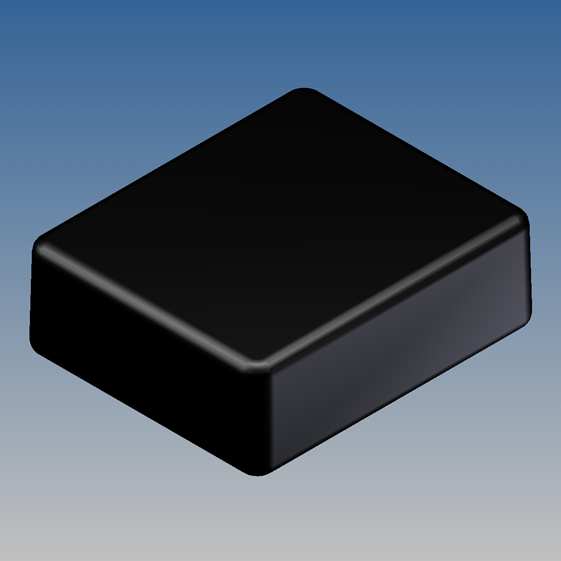

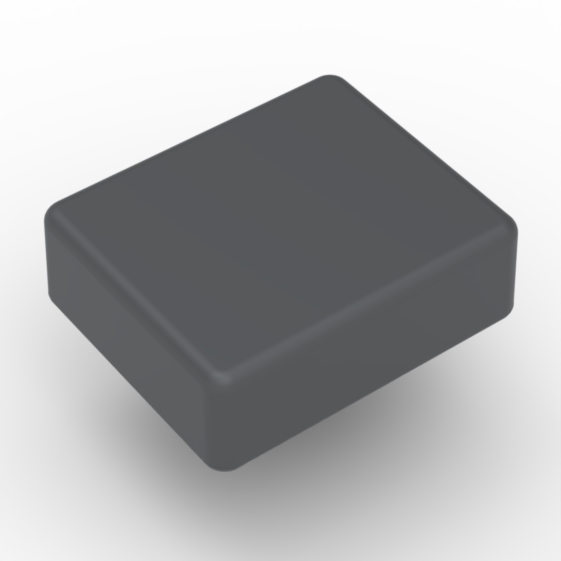

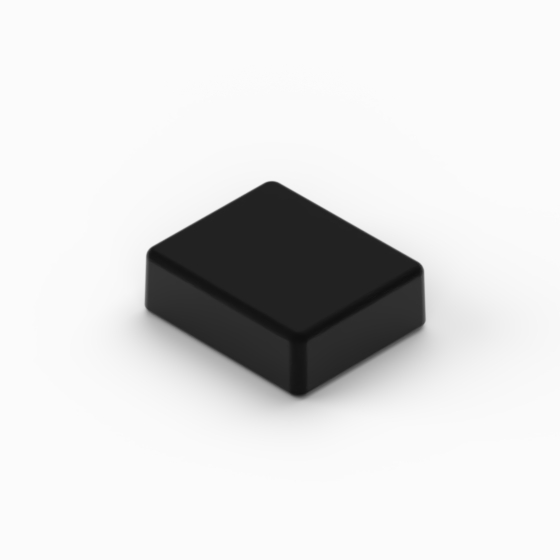

| Modell | SR22.9 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 26 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

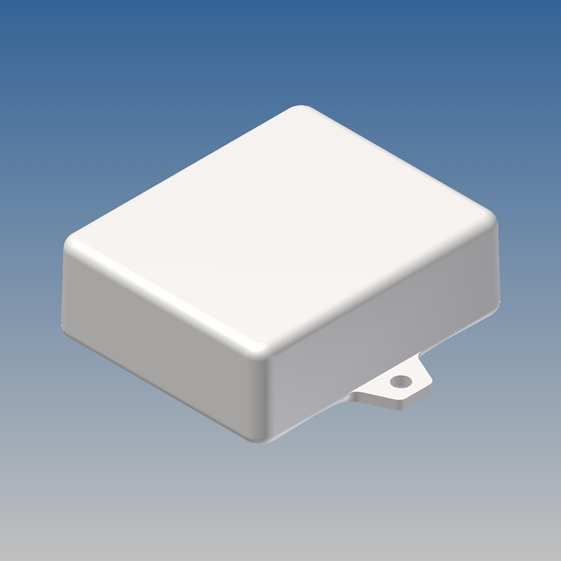

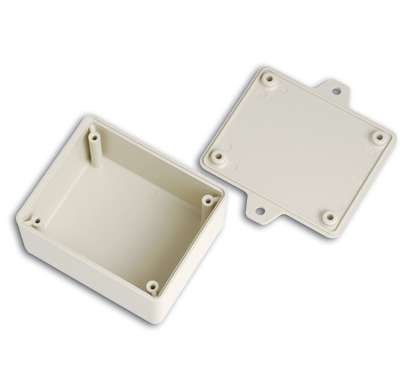

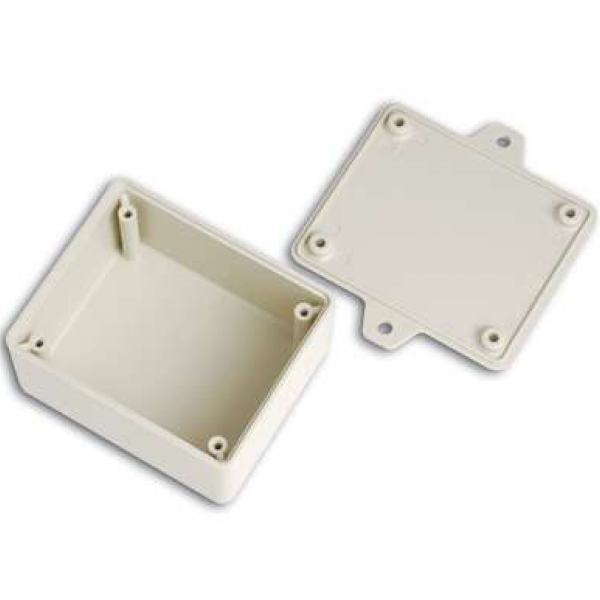

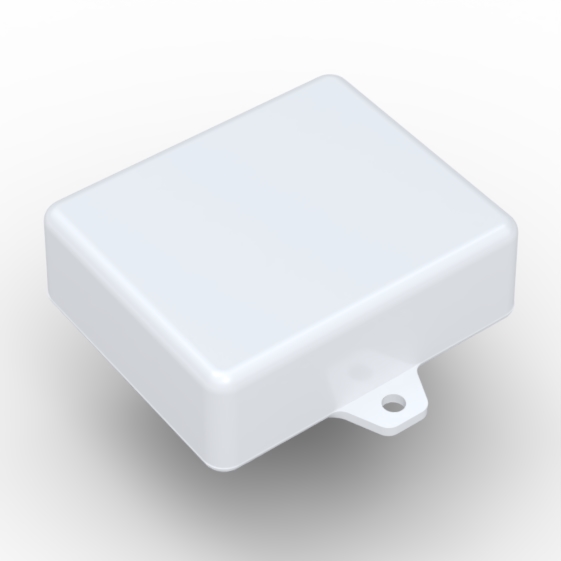

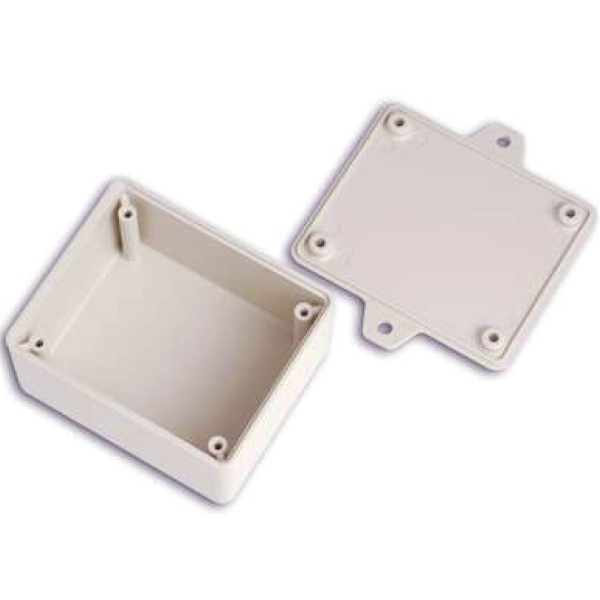

| Modell | SR22-E.7 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 26 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

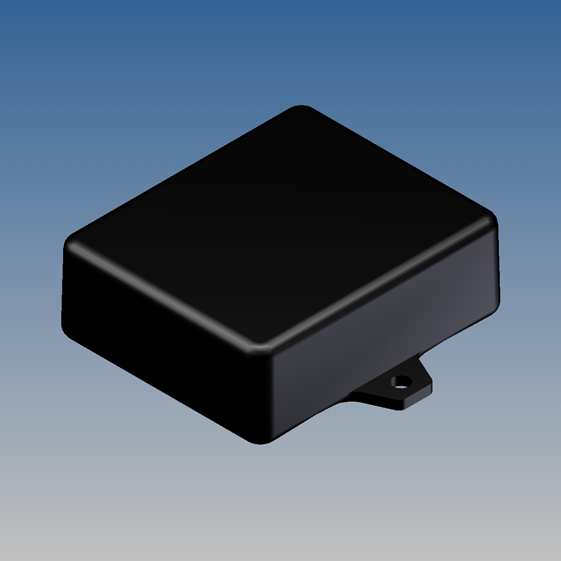

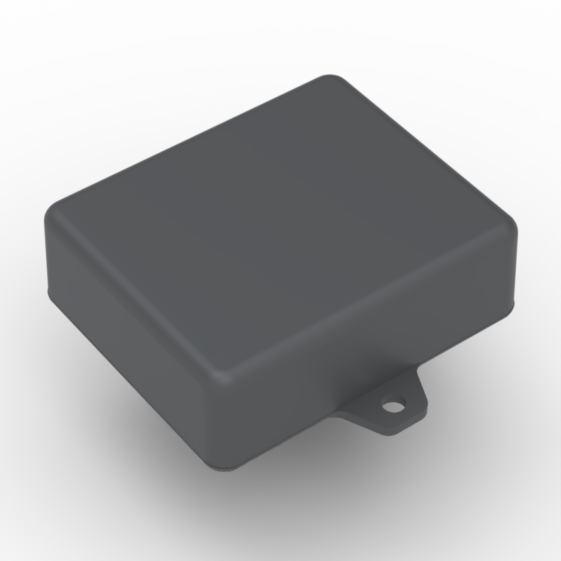

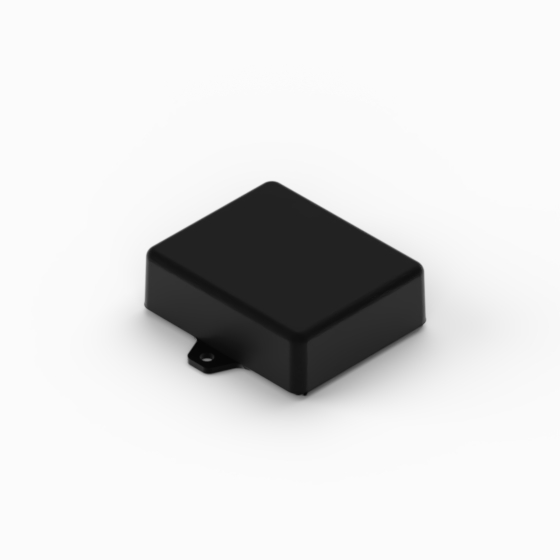

| Modell | SR22-E.9 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 26 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

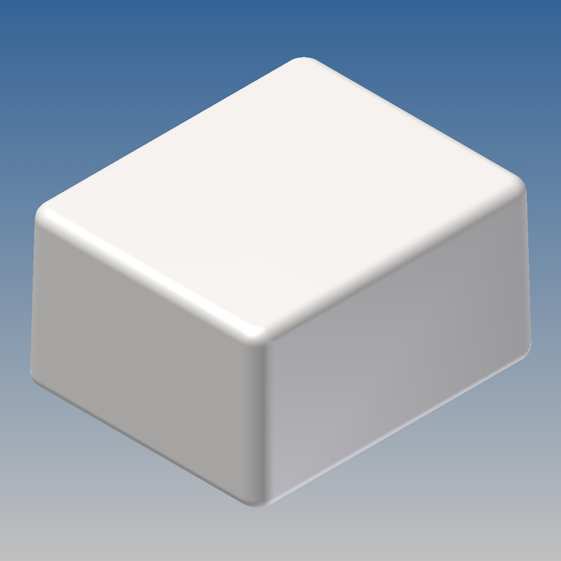

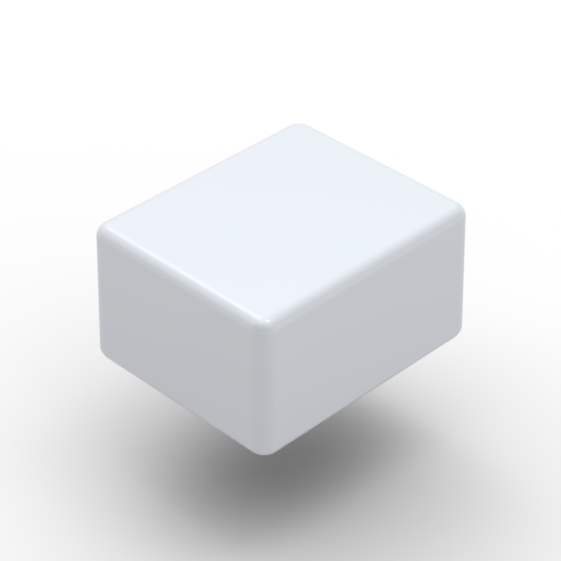

| Modell | SR23.7 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 41 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

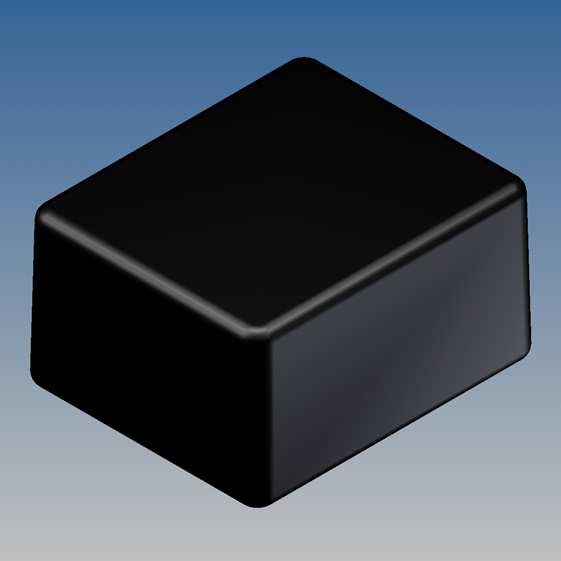

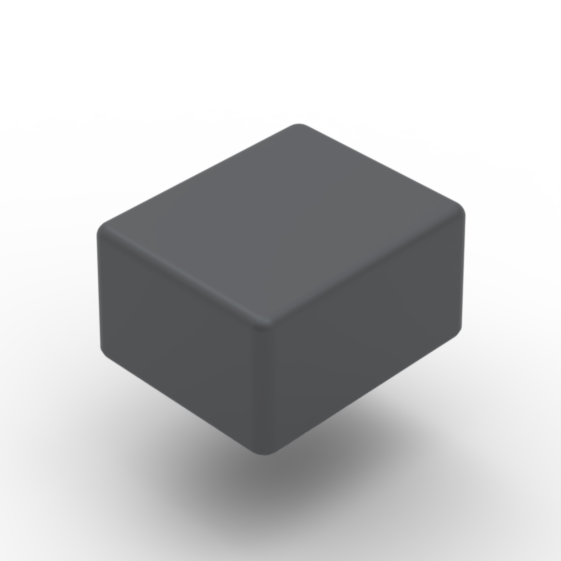

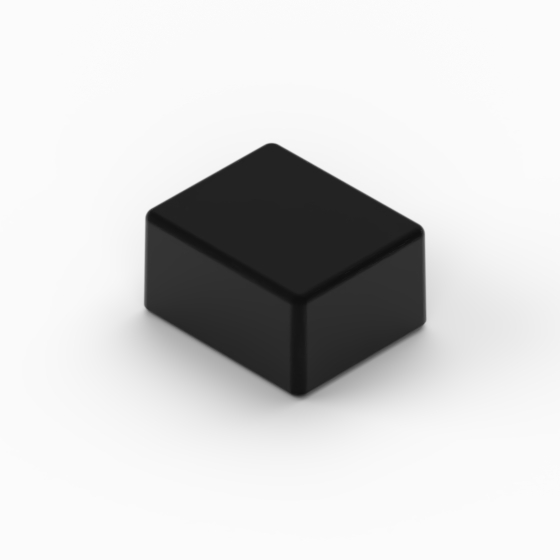

| Modell | SR23.9 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 41 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

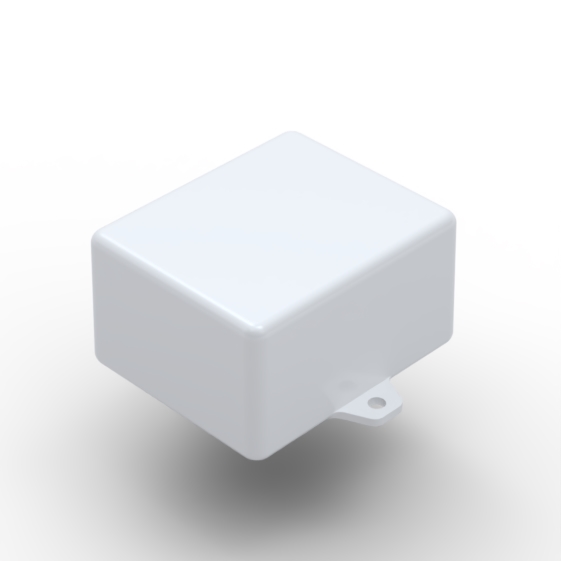

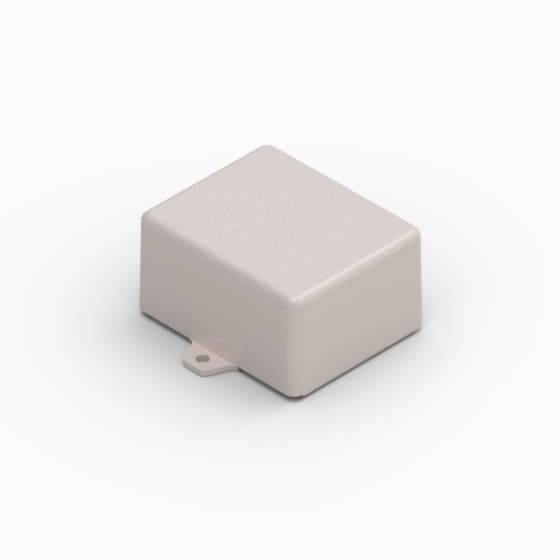

| Modell | SR23-E.7 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 41 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

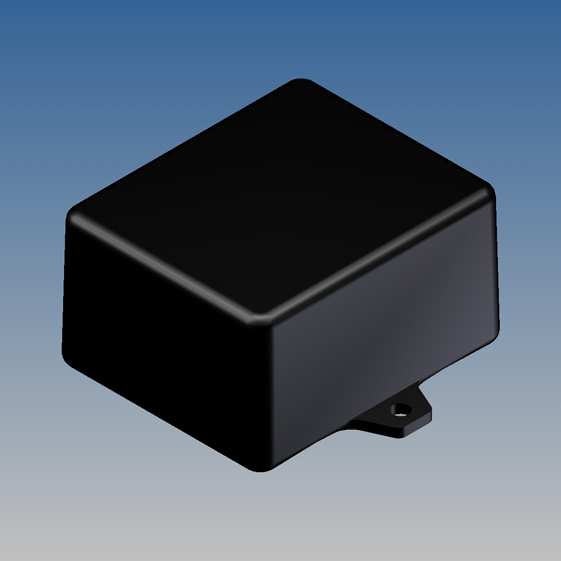

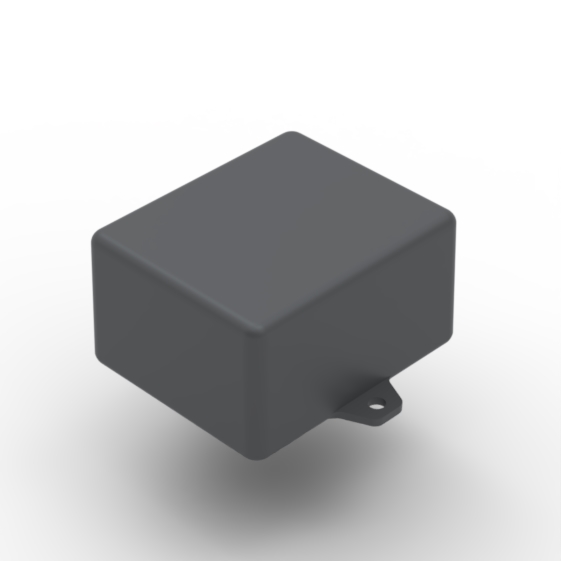

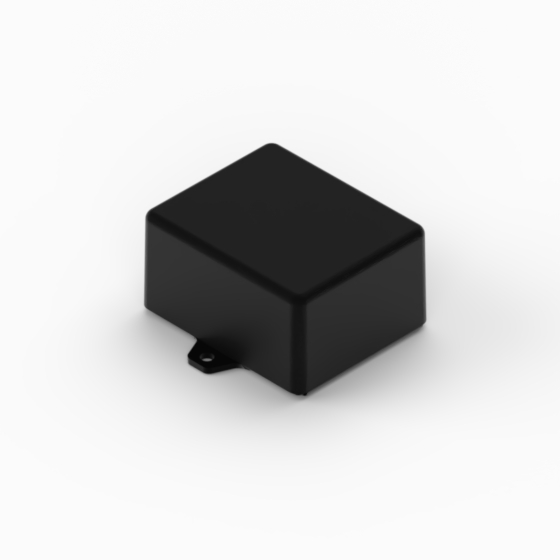

| Modell | SR23-E.9 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 41 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

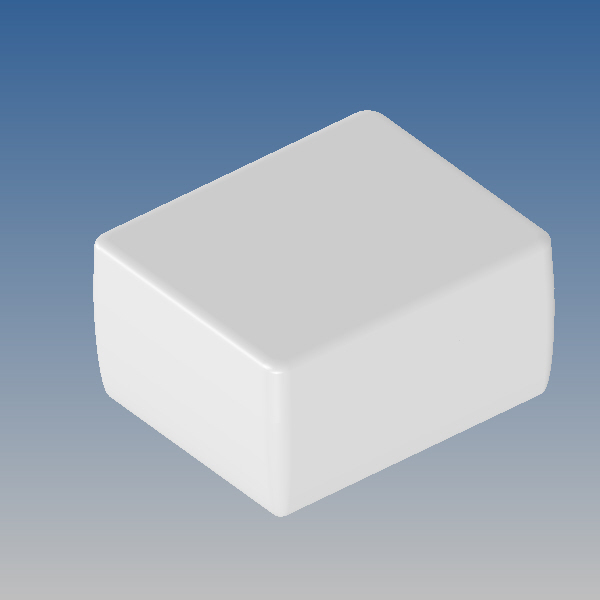

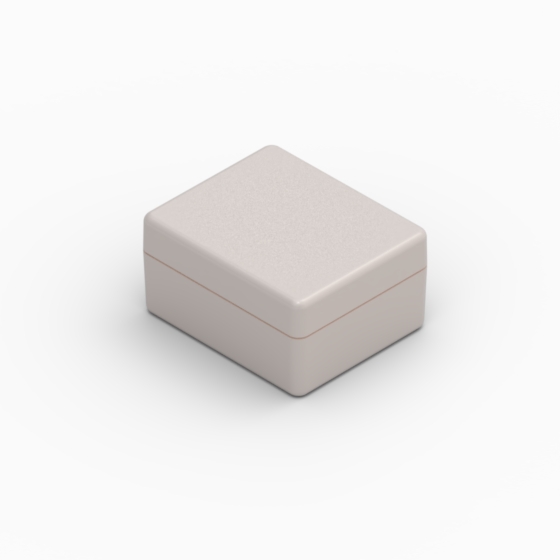

| Modell | SR24-DB.7 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 38,7 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

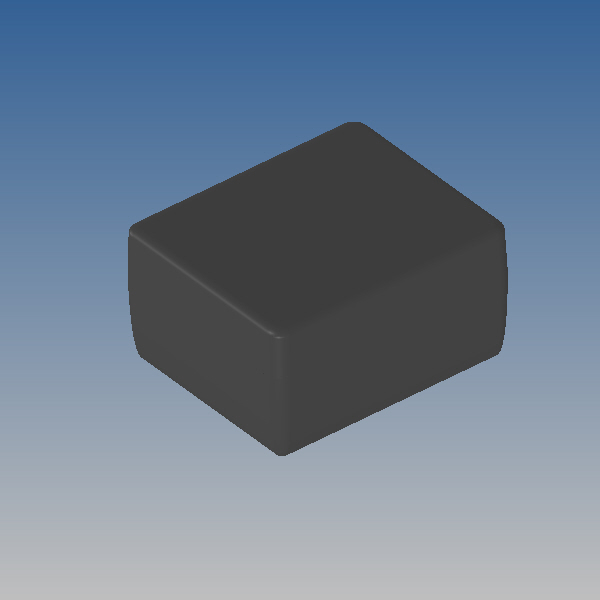

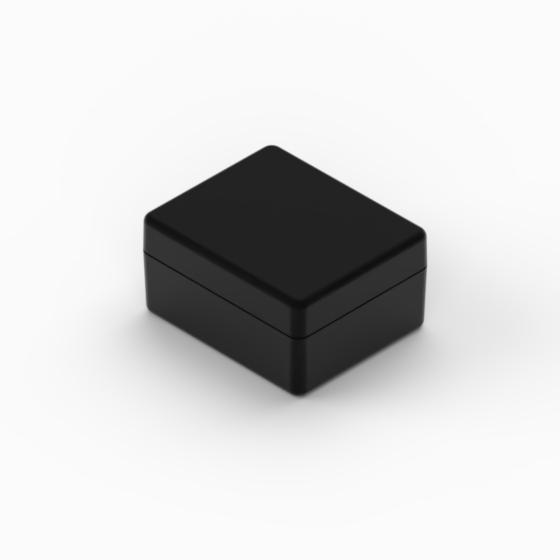

| Modell | SR24-DB.9 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 38,7 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

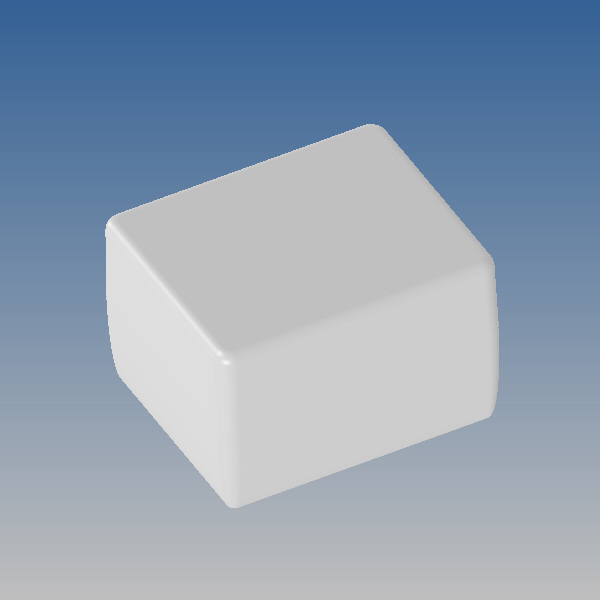

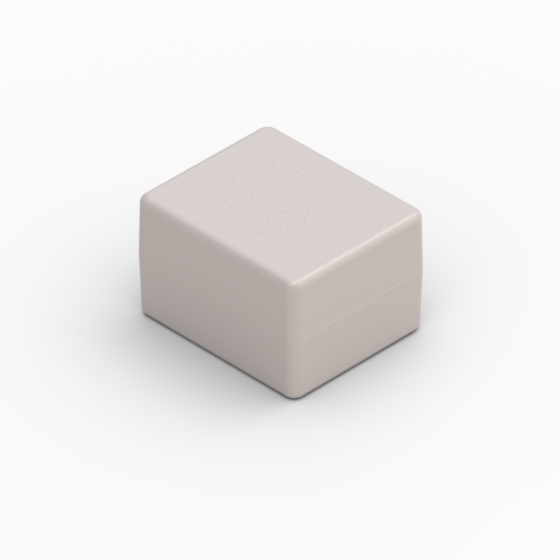

| Modell | SR25-DB - OUT OF STOCK.7 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 48 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

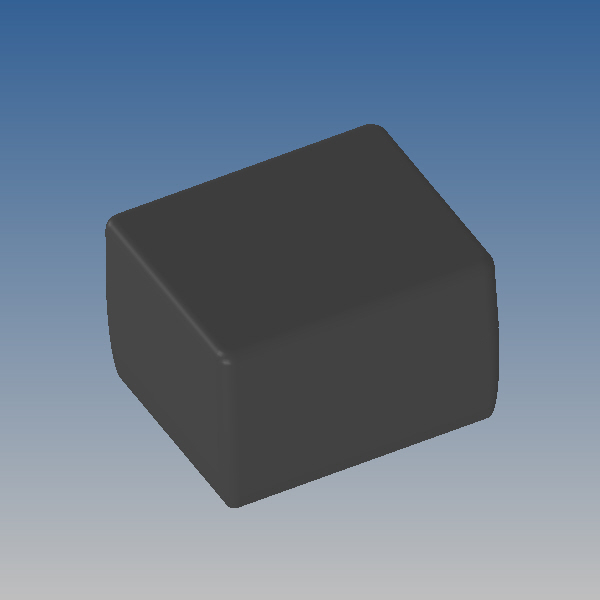

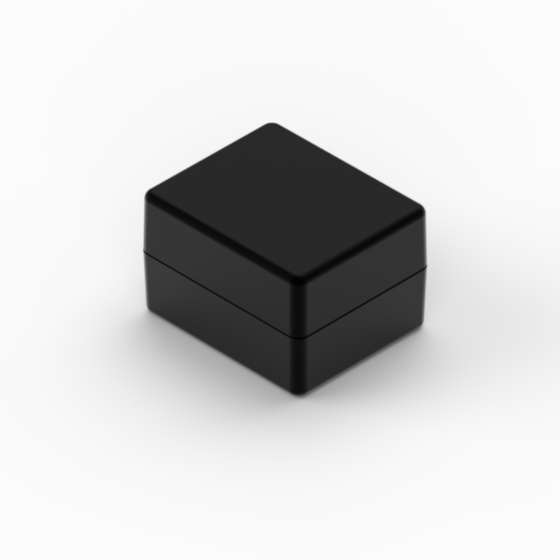

| Modell | SR25-DB - OUT OF STOCK.9 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 48 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

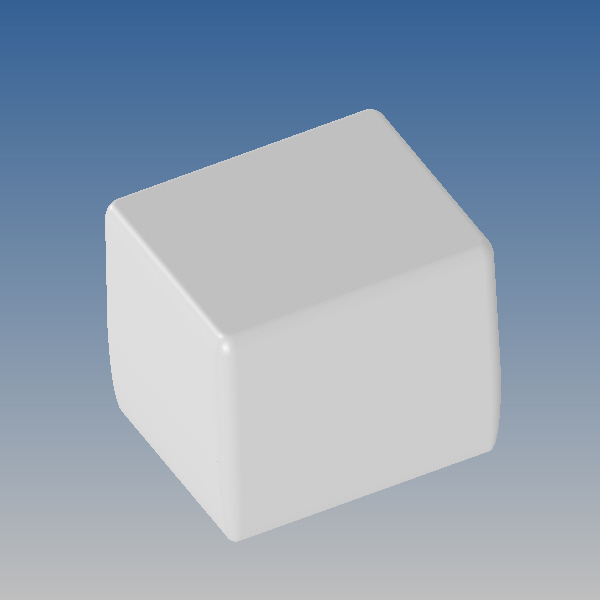

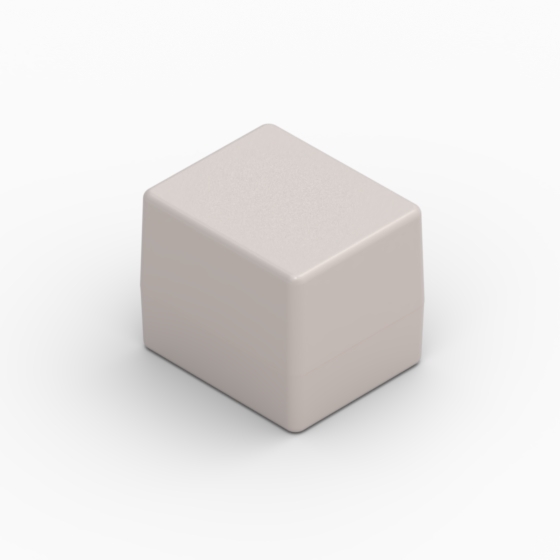

| Modell | SR26-DB - OUT OF STOCK.7 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 63,4 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

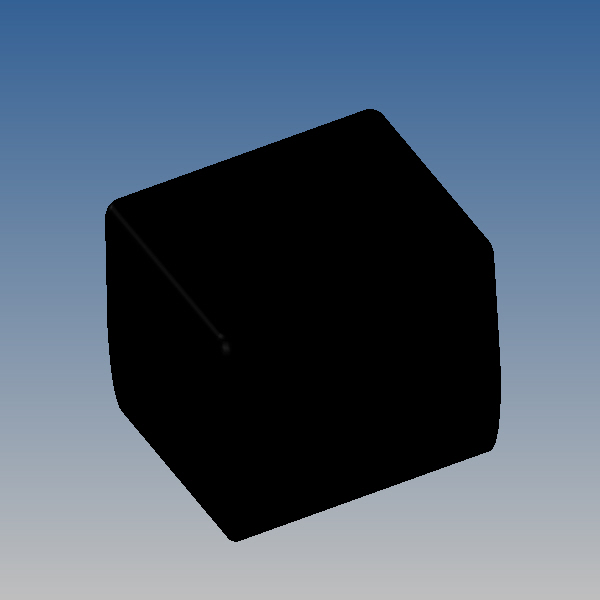

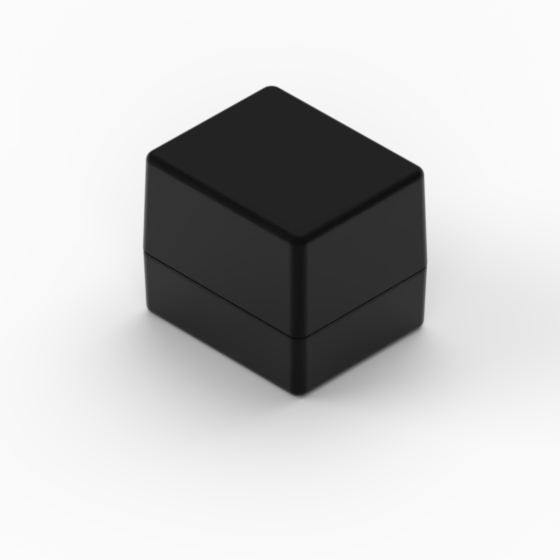

| Modell | SR26-DB - OUT OF STOCK.9 |
| L (mm) | 76 |
| W (mm) | 63,5 |
| H (mm) | 63,4 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 67,6 |
| MAX PCB W (mm) | 55,1 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

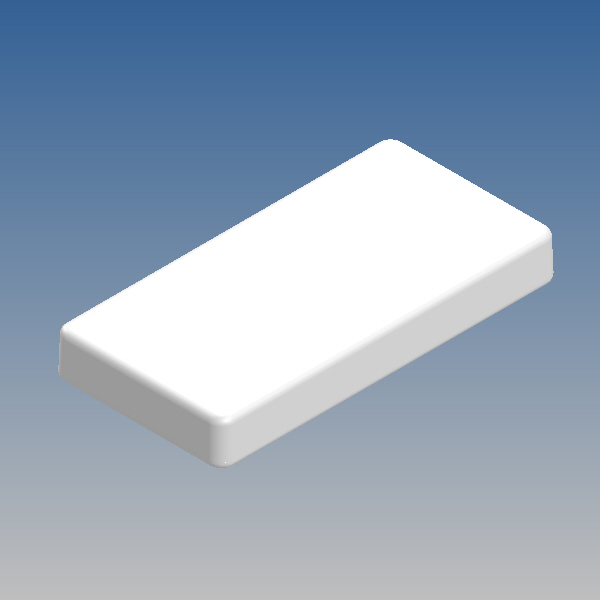

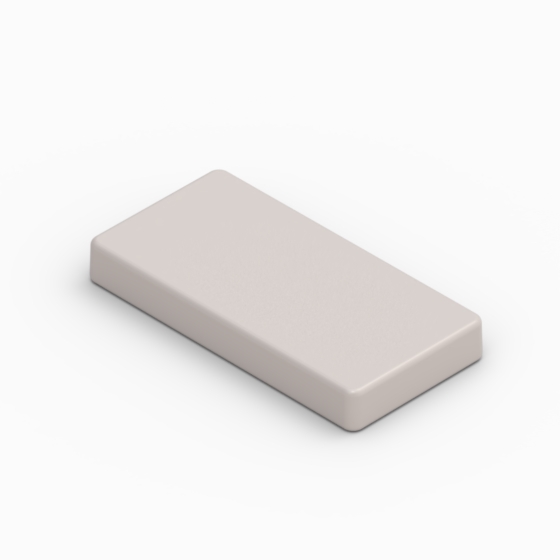

| Modell | SR31 - OUT OF STOCK .7 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 16,5 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

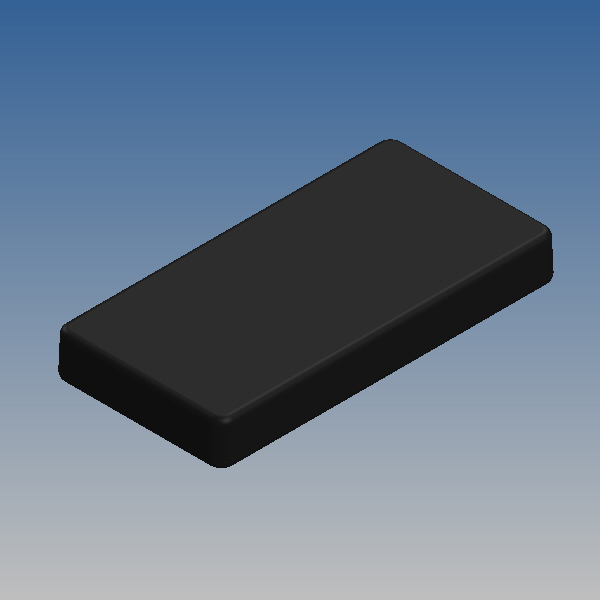

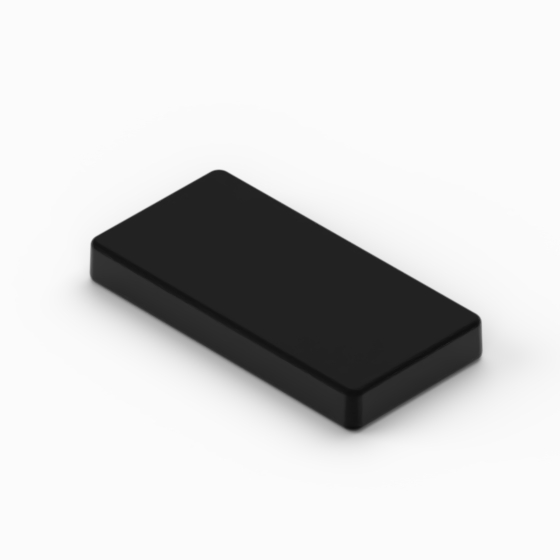

| Modell | SR31 - OUT OF STOCK .9 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 16,5 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

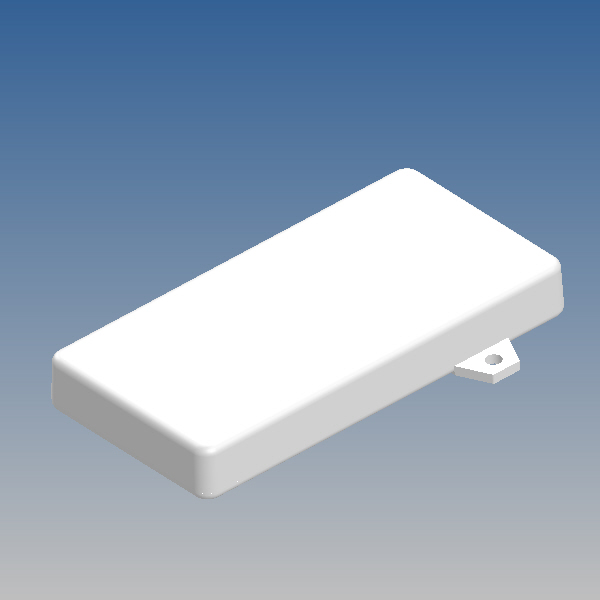

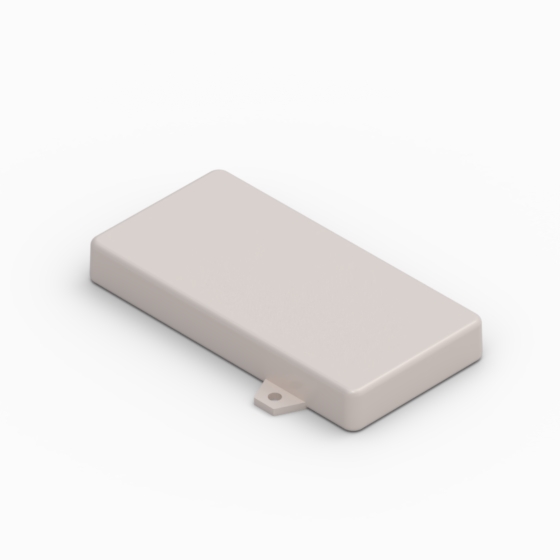

| Modell | SR31-E - OUT OF STOCK.7 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 16,5 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

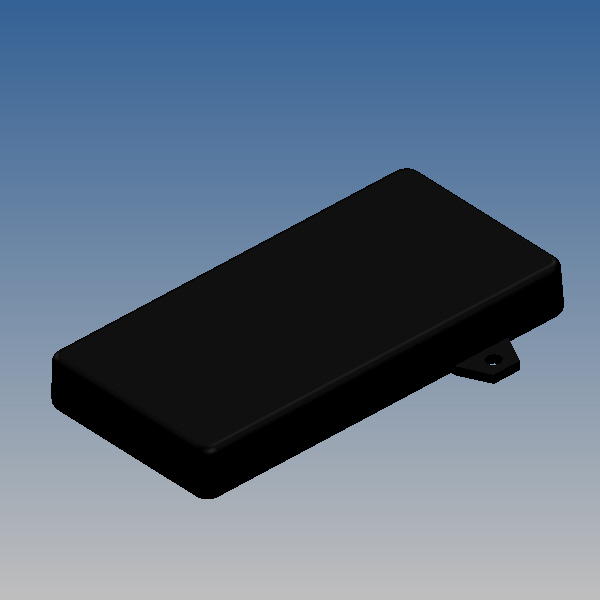

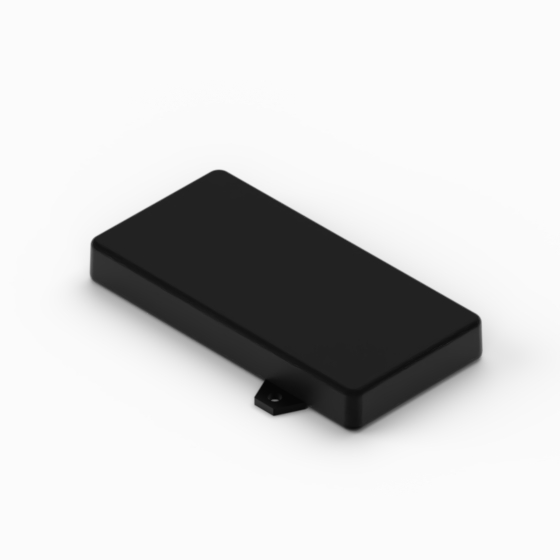

| Modell | SR31-E - OUT OF STOCK.9 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 16,5 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

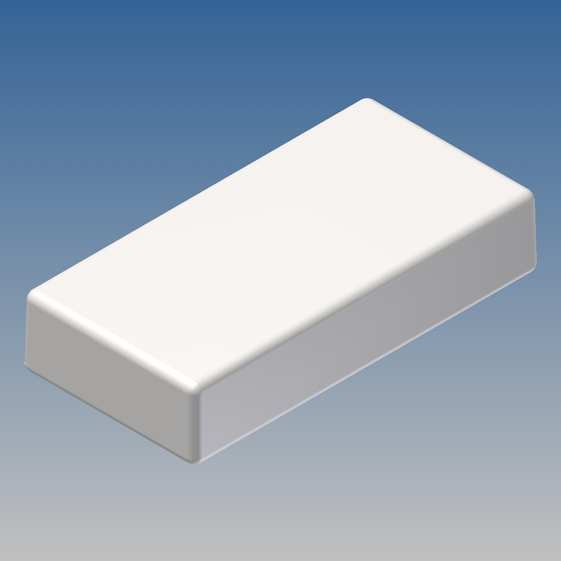

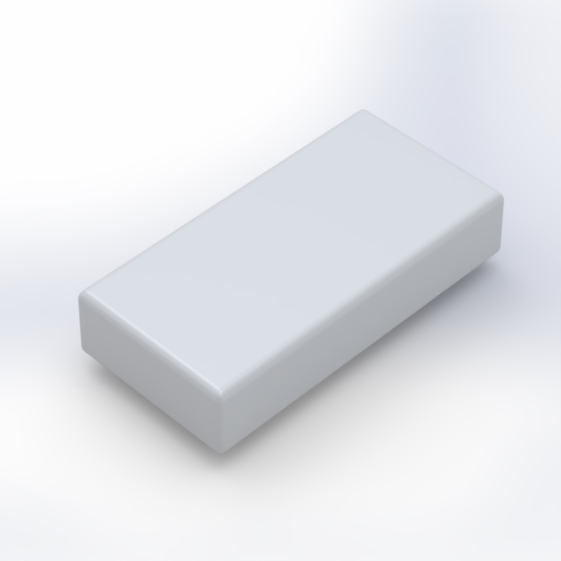

| Modell | SR33 - OUT OF STOCK.7 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 26 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

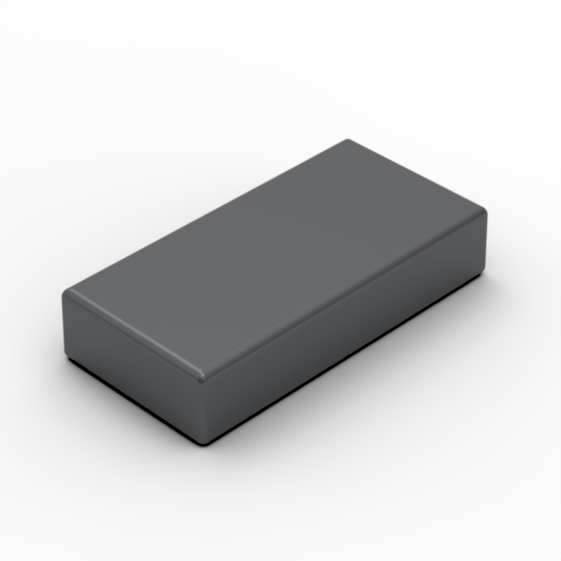

| Modell | SR33 - OUT OF STOCK.9 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 26 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

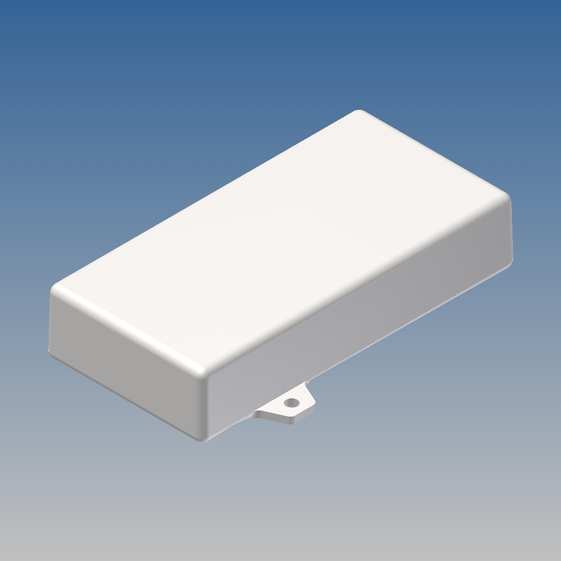

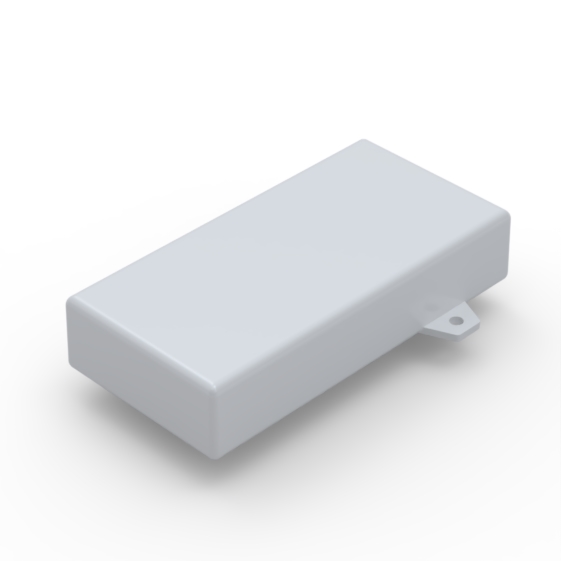

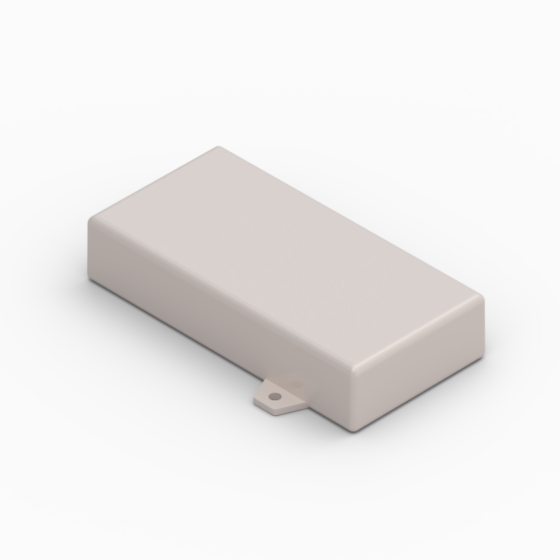

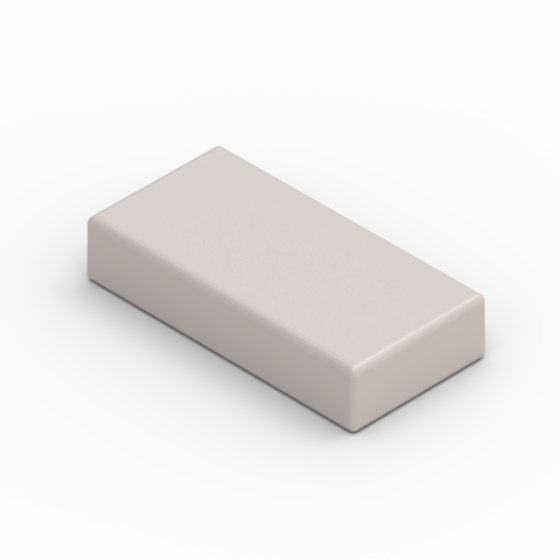

| Modell | SR33-E.7 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 26 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

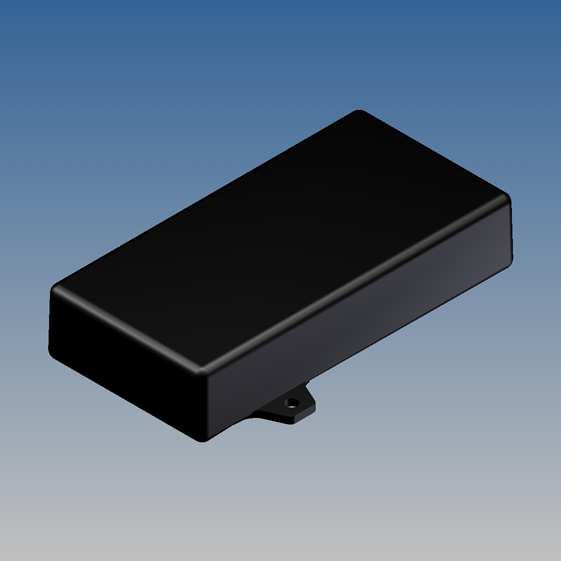

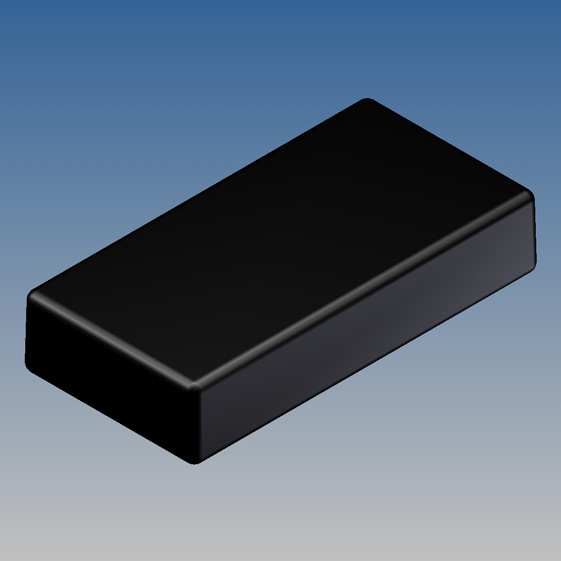

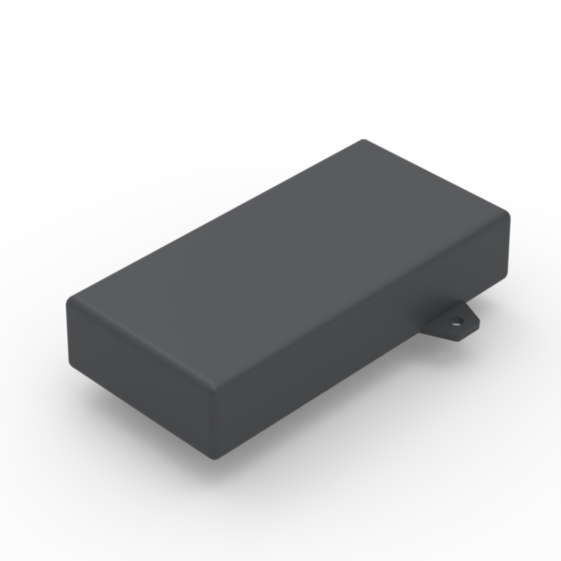

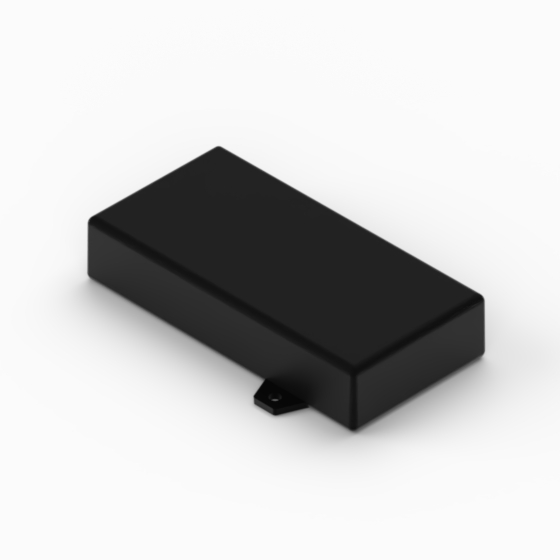

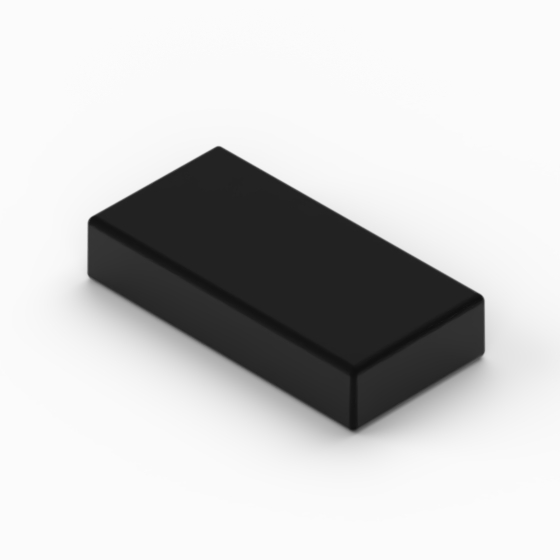

| Modell | SR33-E.9 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 26 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

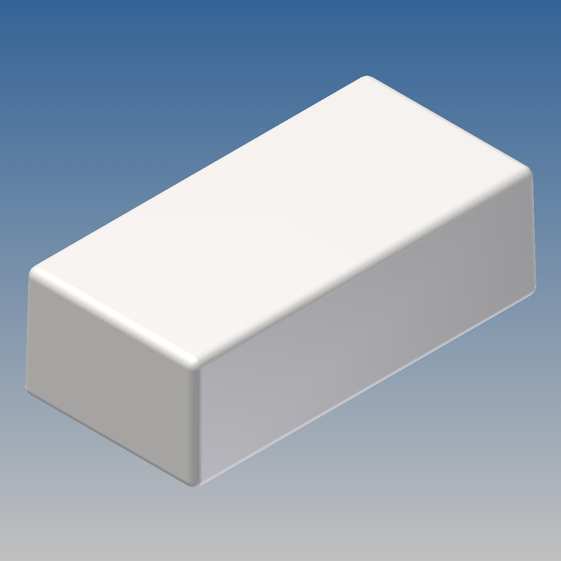

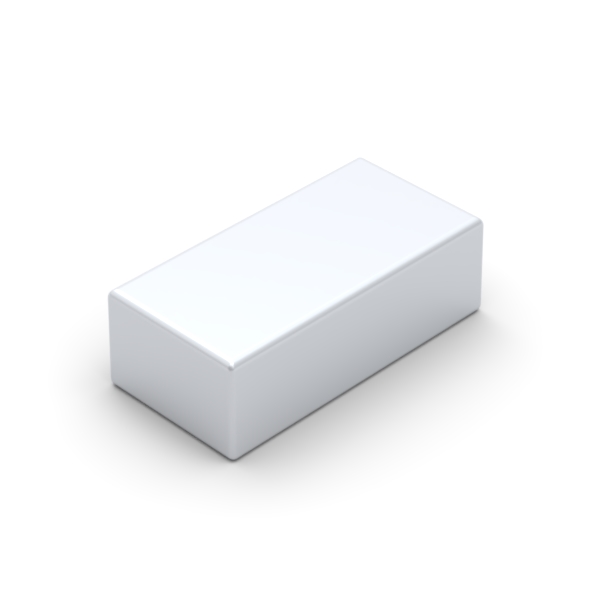

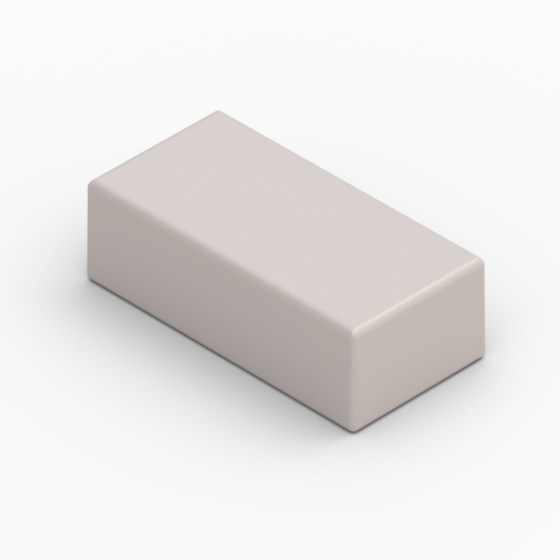

| Modell | SR34.7 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 41 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

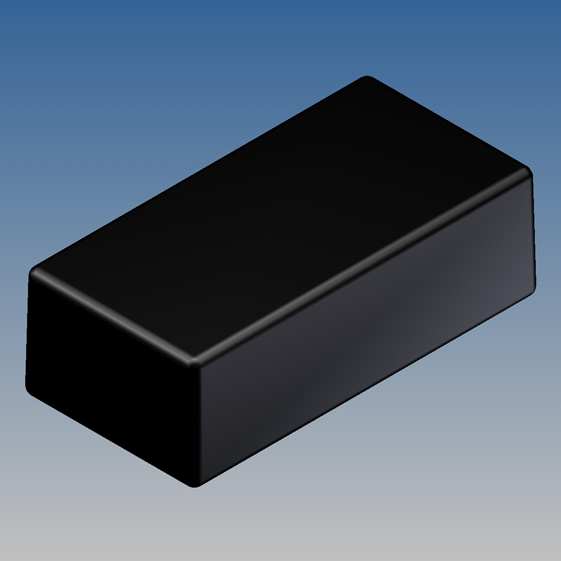

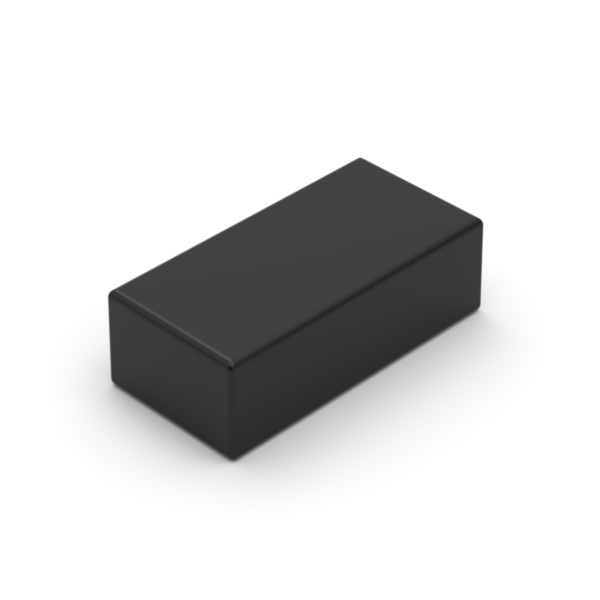

| Modell | SR34.9 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 41 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

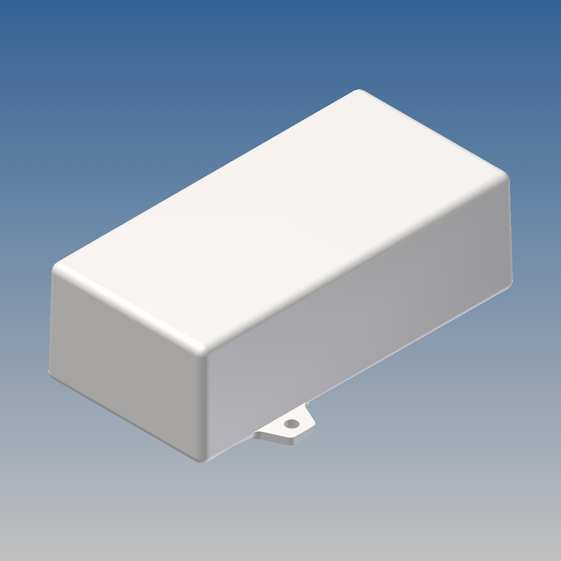

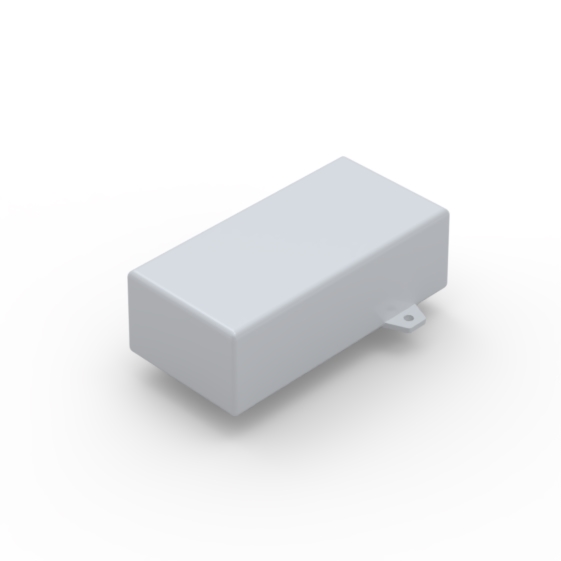

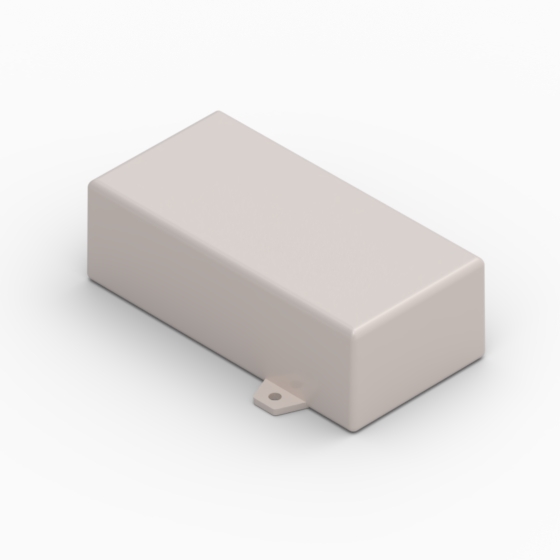

| Modell | SR34-E.7 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 41 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

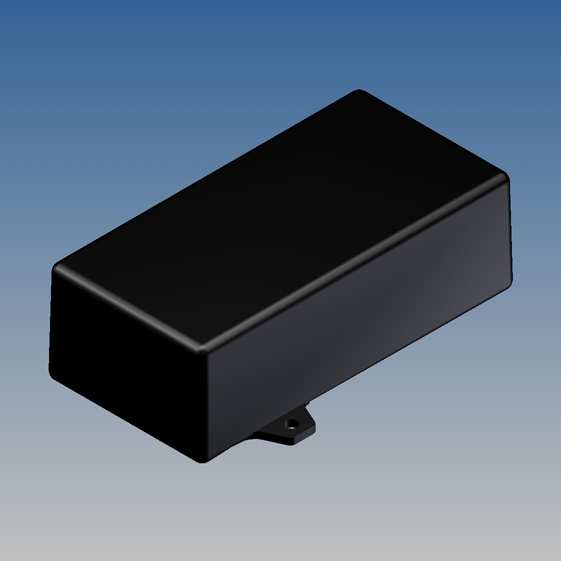

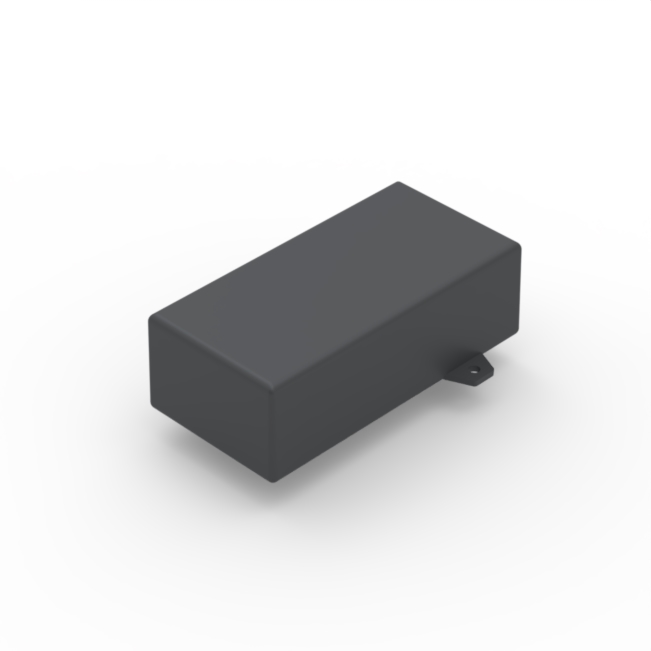

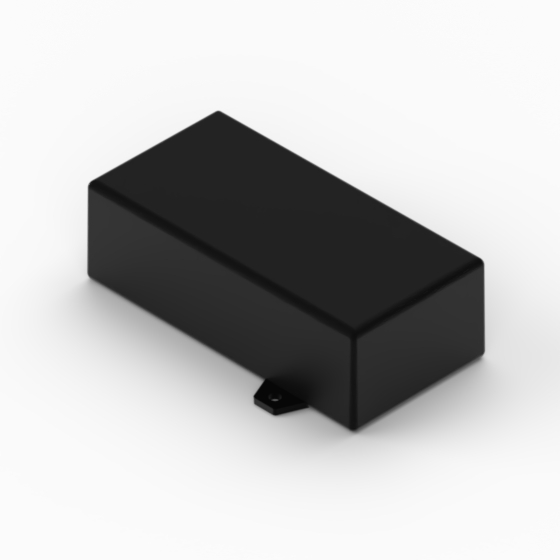

| Modell | SR34-E.9 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 41 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

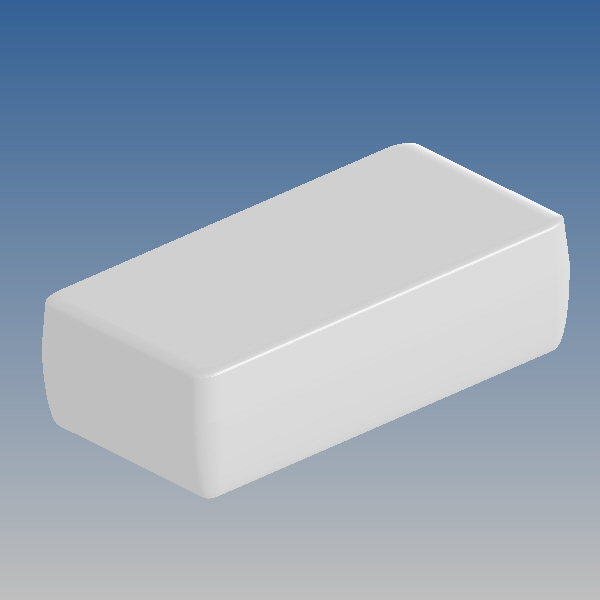

| Modell | SR35-DB - OUT OF STOCK.7 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 38,7 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

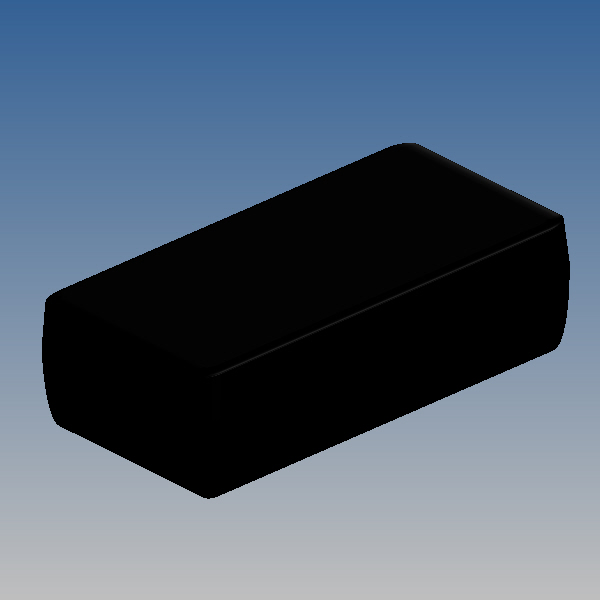

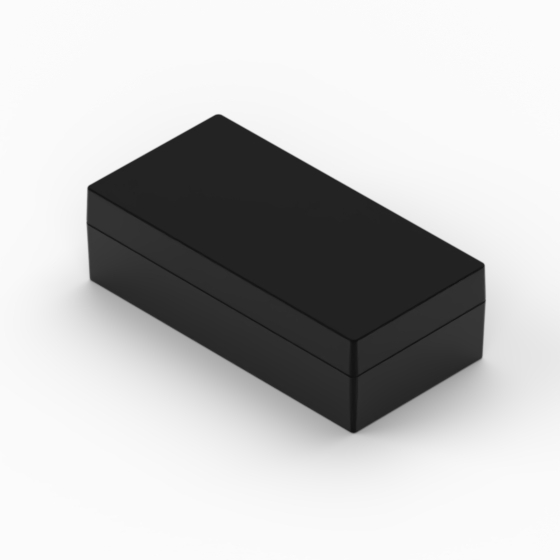

| Modell | SR35-DB - OUT OF STOCK.9 |
| L (mm) | 128 |
| W (mm) | 64 |
| H (mm) | 38,7 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

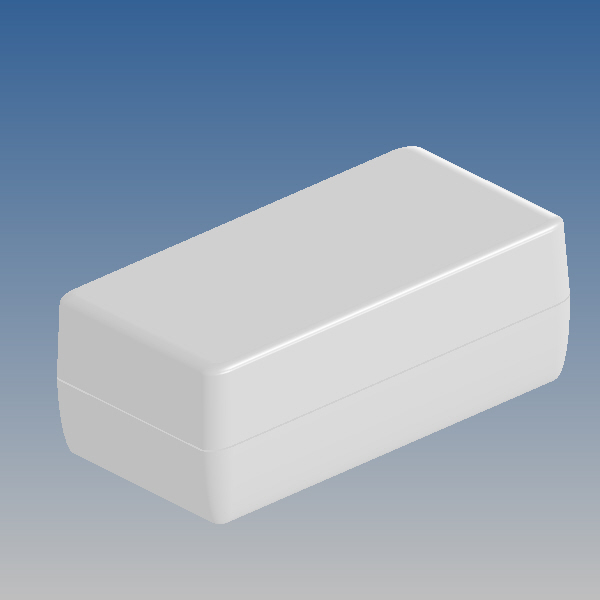

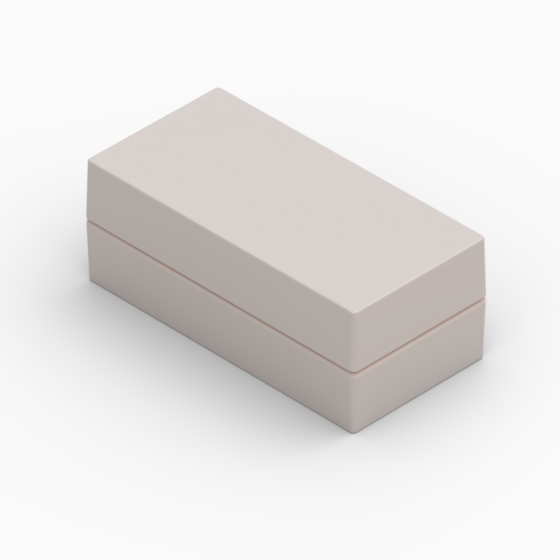

| Modell | SR36-DB - OUT OF STOCK.7 |
| L (mm) | 128 |
| W (mm) | 63,5 |
| H (mm) | 48 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

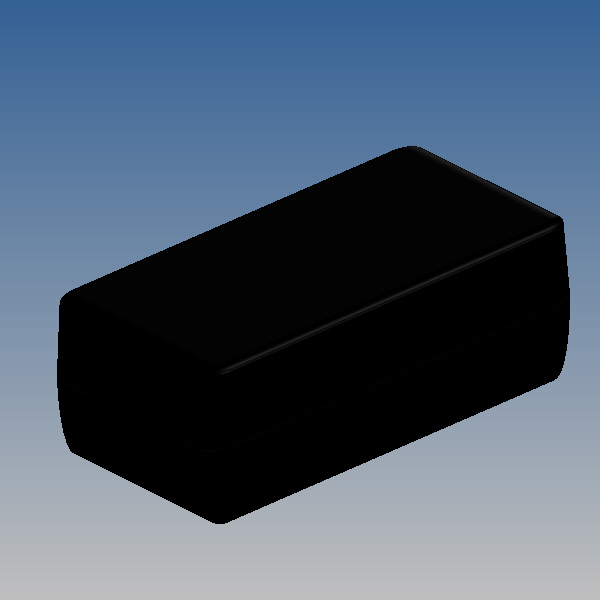

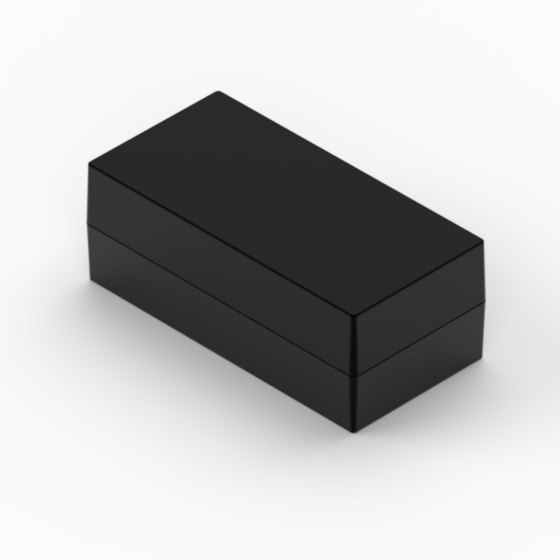

| Modell | SR36-DB - OUT OF STOCK.9 |
| L (mm) | 128 |
| W (mm) | 63,5 |
| H (mm) | 48 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

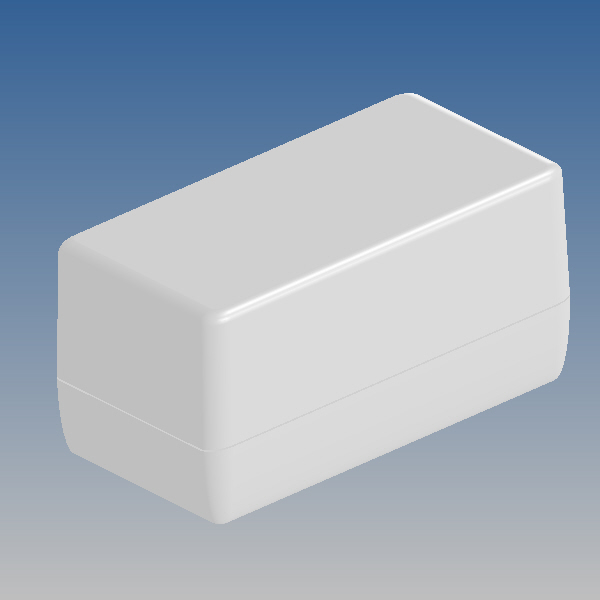

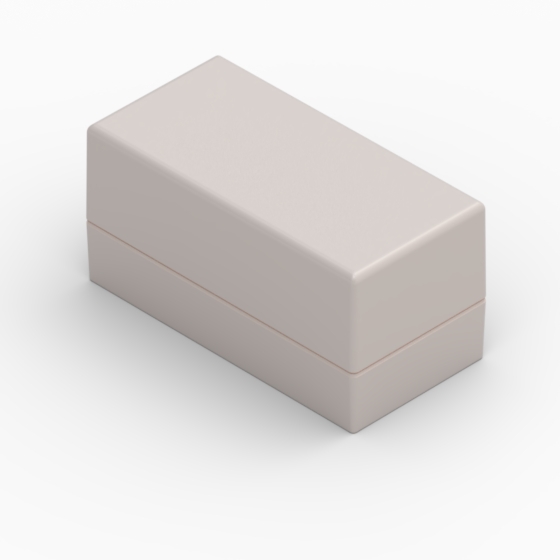

| Modell | SR37-DB - OUT OF STOCK.7 |
| L (mm) | 128 |
| W (mm) | 63,5 |
| H (mm) | 63 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

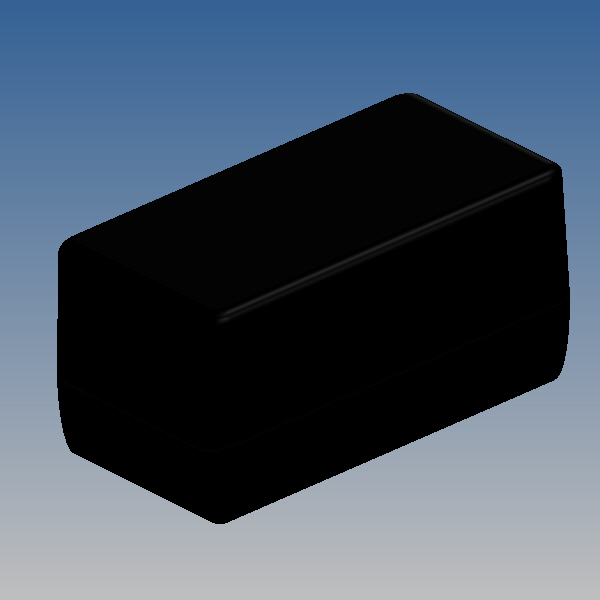

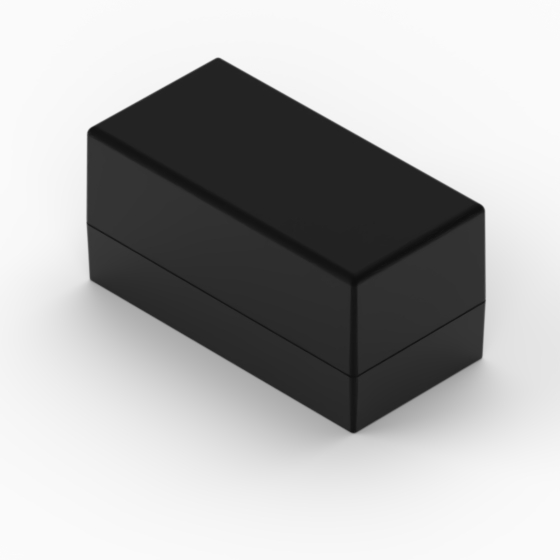

| Modell | SR37-DB - OUT OF STOCK.9 |
| L (mm) | 128 |
| W (mm) | 63,5 |
| H (mm) | 63 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 120,3 |
| MAX PCB W (mm) | 56,4 |
| Schrauben | 4 |
| Batterie | |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

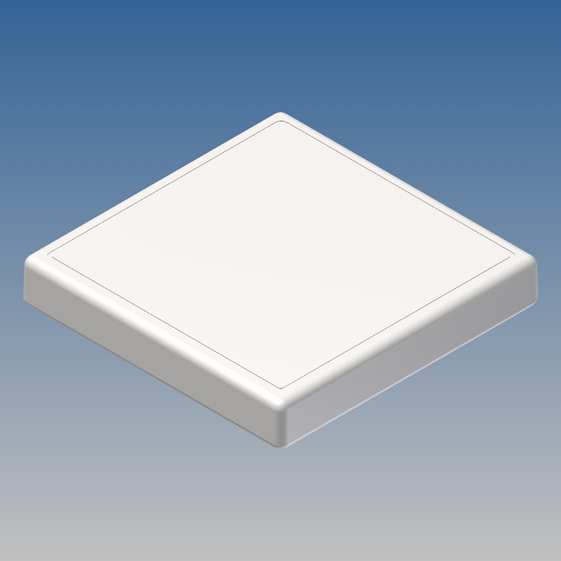

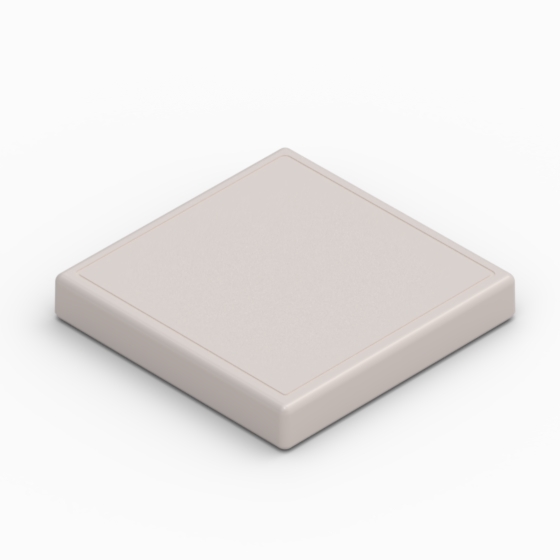

| Modell | SR75.7 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 18,2 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

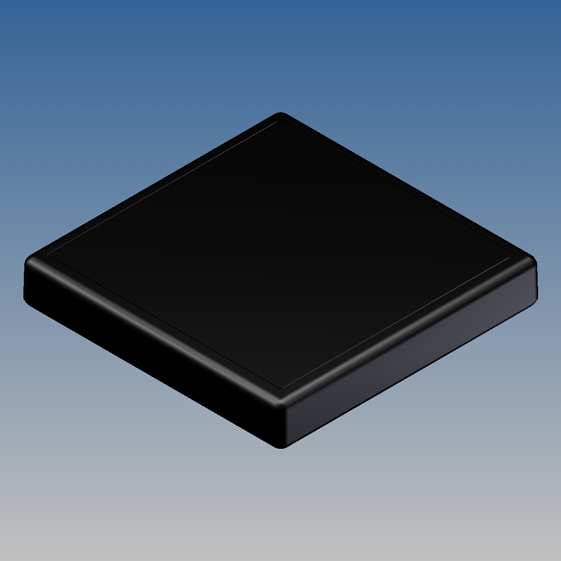

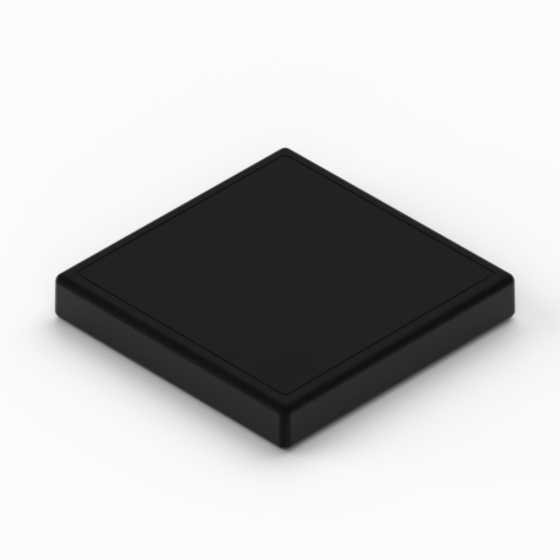

| Modell | SR75.9 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 18,2 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

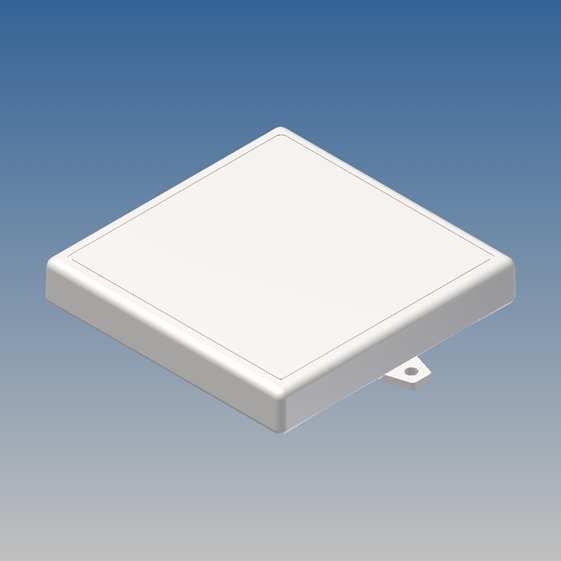

| Modell | SR75-E - OUT OF STOCK.7 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 18,2 |
| Farbe (Ral) |
9002 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| |

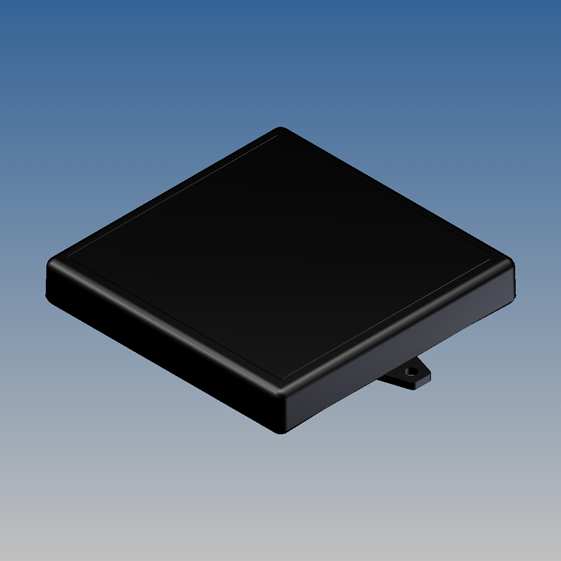

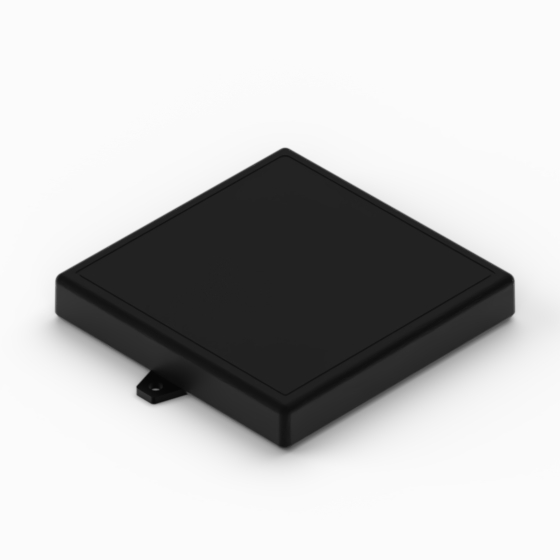

| Modell | SR75-E - OUT OF STOCK.9 |
| L (mm) | 111,1 |
| W (mm) | 111,1 |
| H (mm) | 18,2 |
| Farbe (Ral) |
9004 |
| Material | TERLURAN GP-22 |
| MAX PCB L (mm) | 103,5 |
| MAX PCB W (mm) | 103,5 |
| Schrauben | 4 |
| Batterie | - |
| Zubehör | |
| Zeichnungen |
PDF DWG |
| Mehr |
Displays
|
| Modell | L (mm) | W (mm) | H (mm) | Farbe (Ral) | Material | MAX PCB L (mm) | MAX PCB W (mm) | Schrauben | Batterie | Zubehör | Zeichnungen | Mehr | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
SR01.7 | 57 | 38 | 20 |
9002 |
TERLURAN GP-22 | 50 | 31 | 2 | - |
PDF DWG |
Displays
|
|
|
|
SR01.9 | 57 | 38 | 20 |
9004 |
TERLURAN GP-22 | 50 | 31 | 2 | - |
PDF DWG |
Displays
|
|
|
|
SR01-E.7 | 57 | 38 | 20 |
9002 |
TERLURAN GP-22 | 50 | 31 | 2 | - |
PDF DWG |
Displays
|
|
|
|
SR01-E.9 | 57 | 38 | 20 |
9004 |
TERLURAN GP-22 | 50 | 31 | 2 | - |
PDF DWG |
Displays
|
|
|
|
SR02.7 | 71,5 | 38,3 | 22,9 |
9002 |
TERLURAN GP-22 | 64,5 | 31 | 2 |
PDF DWG |
Displays
|
||
|
|
SR02.9 | 71,5 | 38,3 | 22,9 |
9004 |
TERLURAN GP-22 | 64,5 | 31 | 2 |
PDF DWG |
Displays
|
||
|
|
SR02-E.7 | 71,5 | 38,3 | 22,9 |
9002 |
TERLURAN GP-22 | 64,5 | 31 | 2 |
PDF DWG |
Displays
|
||
|
|
SR02-E.9 | 71,5 | 38,3 | 22,9 |
9004 |
TERLURAN GP-22 | 64,5 | 31 | 2 |
PDF DWG |
Displays
|
||
|
|
SR03 - OUT OF STOCK.7 | 71,5 | 38,3 | 40,9 |
9002 |
TERLURAN GP-22 | 64,5 | 31 | 2 |
PDF DWG |
Displays
|
||
|
|
SR03 - OUT OF STOCK.9 | 71,5 | 38,3 | 40,9 |
9004 |
TERLURAN GP-22 | 64,5 | 31 | 2 |
PDF DWG |
Displays
|
||
|
|
SR03-E - OUT OF STOCK.7 | 71,5 | 38,3 | 40,9 |
9002 |
TERLURAN GP-22 | 64,5 | 31 | 2 |
PDF DWG |
Displays
|
||
|
|
SR03-E - OUT OF STOCK.9 | 71,5 | 38,3 | 40,9 |
9004 |
TERLURAN GP-22 | 64,5 | 31 | 2 |
PDF DWG |
Displays
|
||
|
|
SR04.7 | 88,9 | 50,8 | 25,5 |
9002 |
TERLURAN GP-22 | 82 | 44 | 4 |
PDF DWG |
Displays
|
||
|
|
SR04.9 | 88,9 | 50,8 | 25,5 |
9004 |
TERLURAN GP-22 | 82 | 44 | 4 |
PDF DWG |
Displays
|
||
|
|
SR04-E.7 | 88,9 | 50,8 | 25,5 |
9002 |
TERLURAN GP-22 | 82 | 44 | 4 |
PDF DWG |
Displays
|
||
|
|
SR04-E.9 | 88,9 | 50,8 | 25,5 |
9004 |
TERLURAN GP-22 | 82 | 44 | 4 |
PDF DWG |
Displays
|
||
|
|
SR06 - OUT OF STOCK.7 | 153 | 52 | 28 |
9002 |
TERLURAN GP-22 | 144 | 43 | 4 |
PDF DWG |
Displays
|
||
|
|
SR06 - OUT OF STOCK.9 | 153 | 52 | 28 |
9004 |
TERLURAN GP-22 | 144 | 43 | 4 |
PDF DWG |
Displays
|
||
|
|
SR120 - OUT OF STOCK.7 | 111,1 | 111,1 | 31 |
9002 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR120 - OUT OF STOCK.9 | 111,1 | 111,1 | 31 |
9004 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR120-E - OUT OF STOCK.7 | 111,1 | 111,1 | 31 |
9002 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR120-E - OUT OF STOCK.9 | 111,1 | 111,1 | 31 |
9004 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR170 - OUT OF STOCK.7 | 111,1 | 111,1 | 43,4 |
9002 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR170 - OUT OF STOCK.9 | 111,1 | 111,1 | 43,4 |
9004 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR170-E - OUT OF STOCK.7 | 111,1 | 111,1 | 43,4 |
9002 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR170-E - OUT OF STOCK.9 | 111,1 | 111,1 | 43,4 |
9004 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR21 - OUT OF STOCK.7 | 76,2 | 65,5 | 16,6 |
9002 |
TERLURAN GP-22 | 70,6 | 57.9 | 4 |
PDF DWG |
Displays
|
||
|
|
SR21 - OUT OF STOCK.9 | 76,2 | 65,5 | 16,6 |
9004 |
TERLURAN GP-22 | 70,6 | 57.9 | 4 |
PDF DWG |
Displays
|
||
|
|
SR21-E.7 | 76,2 | 63,5 | 16,6 |
9002 |
TERLURAN GP-22 | 70,6 | 57.9 | 4 |
PDF DWG |
Displays
|
||
|
|
SR21-E.9 | 76,2 | 63,5 | 16,6 |
9004 |
TERLURAN GP-22 | 70,6 | 57.9 | 4 |
PDF DWG |
Displays
|
||
|
|
SR22.7 | 76 | 63,5 | 26 |
9002 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR22.9 | 76 | 63,5 | 26 |
9004 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR22-E.7 | 76 | 63,5 | 26 |
9002 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR22-E.9 | 76 | 63,5 | 26 |
9004 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR23.7 | 76 | 63,5 | 41 |
9002 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR23.9 | 76 | 63,5 | 41 |
9004 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR23-E.7 | 76 | 63,5 | 41 |
9002 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR23-E.9 | 76 | 63,5 | 41 |
9004 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR24-DB.7 | 76 | 63,5 | 38,7 |
9002 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 |
PDF DWG |
Displays
|
||
|
|
SR24-DB.9 | 76 | 63,5 | 38,7 |
9004 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 |
PDF DWG |
Displays
|
||
|
|
SR25-DB - OUT OF STOCK.7 | 76 | 63,5 | 48 |
9002 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 |
PDF DWG |
Displays
|
||
|
|
SR25-DB - OUT OF STOCK.9 | 76 | 63,5 | 48 |
9004 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 |
PDF DWG |
Displays
|
||
|
|
SR26-DB - OUT OF STOCK.7 | 76 | 63,5 | 63,4 |
9002 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 |
PDF DWG |
Displays
|
||
|
|
SR26-DB - OUT OF STOCK.9 | 76 | 63,5 | 63,4 |
9004 |
TERLURAN GP-22 | 67,6 | 55,1 | 4 |
PDF DWG |
Displays
|
||
|
|
SR31 - OUT OF STOCK .7 | 128 | 64 | 16,5 |
9002 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 |
PDF DWG |
Displays
|
||
|
|
SR31 - OUT OF STOCK .9 | 128 | 64 | 16,5 |
9004 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 |
PDF DWG |
Displays
|
||
|
|
SR31-E - OUT OF STOCK.7 | 128 | 64 | 16,5 |
9002 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 |
PDF DWG |
Displays
|
||
|
|
SR31-E - OUT OF STOCK.9 | 128 | 64 | 16,5 |
9004 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 |
PDF DWG |
Displays
|
||
|
|
SR33 - OUT OF STOCK.7 | 128 | 64 | 26 |
9002 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR33 - OUT OF STOCK.9 | 128 | 64 | 26 |
9004 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR33-E.7 | 128 | 64 | 26 |
9002 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR33-E.9 | 128 | 64 | 26 |
9004 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR34.7 | 128 | 64 | 41 |
9002 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR34.9 | 128 | 64 | 41 |
9004 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR34-E.7 | 128 | 64 | 41 |
9002 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR34-E.9 | 128 | 64 | 41 |
9004 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR35-DB - OUT OF STOCK.7 | 128 | 64 | 38,7 |
9002 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 |
PDF DWG |
Displays
|
||
|
|
SR35-DB - OUT OF STOCK.9 | 128 | 64 | 38,7 |
9004 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 |
PDF DWG |
Displays
|
||
|
|
SR36-DB - OUT OF STOCK.7 | 128 | 63,5 | 48 |
9002 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 |
PDF DWG |
Displays
|
||
|
|
SR36-DB - OUT OF STOCK.9 | 128 | 63,5 | 48 |
9004 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 |
PDF DWG |
Displays
|
||
|
|
SR37-DB - OUT OF STOCK.7 | 128 | 63,5 | 63 |
9002 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 |
PDF DWG |
Displays
|
||
|
|
SR37-DB - OUT OF STOCK.9 | 128 | 63,5 | 63 |
9004 |
TERLURAN GP-22 | 120,3 | 56,4 | 4 |
PDF DWG |
Displays
|
||
|
|
SR75.7 | 111,1 | 111,1 | 18,2 |
9002 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR75.9 | 111,1 | 111,1 | 18,2 |
9004 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR75-E - OUT OF STOCK.7 | 111,1 | 111,1 | 18,2 |
9002 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
|
|
|
SR75-E - OUT OF STOCK.9 | 111,1 | 111,1 | 18,2 |
9004 |
TERLURAN GP-22 | 103,5 | 103,5 | 4 | - |
PDF DWG |
Displays
|
12 produktfamilien , 152 Serien. Sie können nicht finden, was sie suchen? Kontaktieren sie uns
